PrimaLuceLab ESATTO 2 inch robotic microfocuser

Beschrijving

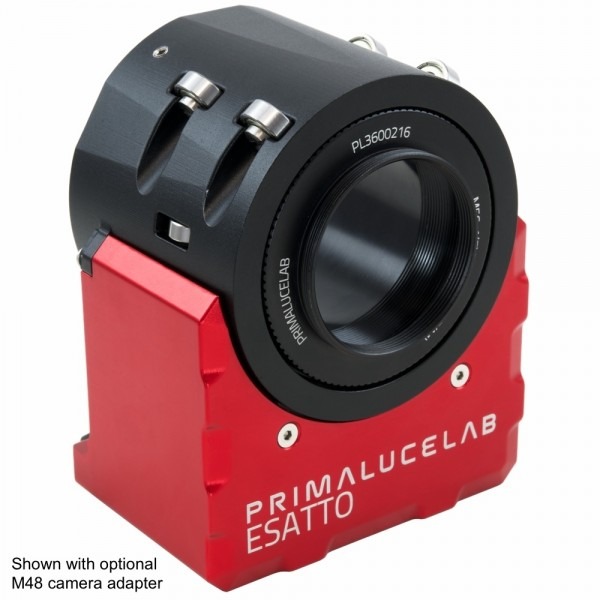

PrimaLuceLab ESATTO 2 inch robotic microfocuser

ESATTO is de nieuwe generatie robot focusseer die u bestuurt via elke Windows-computer door hem aan te sluiten op een USB-poort of via WiFi door de ESATTO-app op uw smartphone of tablet te gebruiken met de Virtual HandPad!

Aan de camerazijde heeft de ESATTO een buitenschroefdraad van M56 x 0,75 om veel camera’s en accessoires met elkaar te verbinden en handmatig te draaien door de optionele adapters met stopringen toe te voegen. De 2 inch-versie van de ESATTO heeft een diepte van 67 mm, hij heeft een focus van 15 mm op de focus van de buis, een laadvermogen van 5 kg en een ongelooflijke resolutie van 0,04 micron per stap (en daarom noemen we dit ESATTO (EXACT))! je kunt ESATTO-functies ook uitbreiden door de ARCO-robot camera rotator toe te voegen!

Let dus op! Er komen adapters nog bij om de Esatto aan te sluiten op je telescoop en voor de camera.

Tekst van de Esatto overgenomen van de site van PrimaLuceLab.

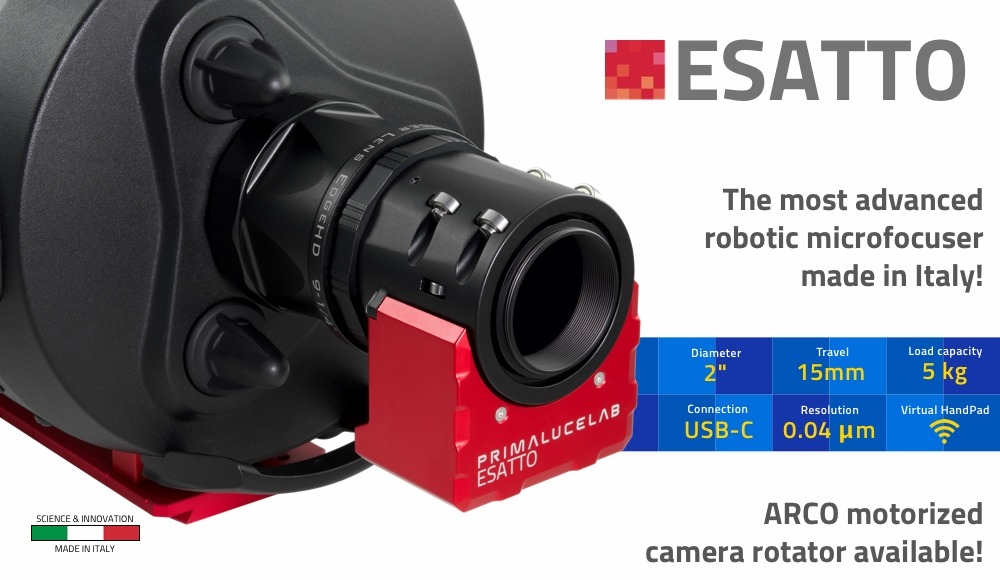

PrimaLuceLab ESATTO 2 inch robotic microfocuser, The best focuser mechanics and electronics in a compact body

The new ESATTO robotic microfocuser was born from our extensive experience in astrophotography and engineered with the uncompromising quality of PrimaLuceLab. We wanted to create the best motorized focuser in the world, with all the latest technical features, resulting in a compact and beautiful design only 67 mm of thick.

Designed to give your telescopes the best performances for astrophotography

The special Crayford design with 18 ball bearings allows ESATTO 2 inch to have an impressive 5 kgs payload capacity with the focusing smoothness that is required by modern astrophotography techniques (eg. autofocusing with V-curve). ESATTO 2inch has a draw tube with 51 mm of free aperture, and 15 mm of travel, offering to an incredible read resolution of 0.04 microns per step!

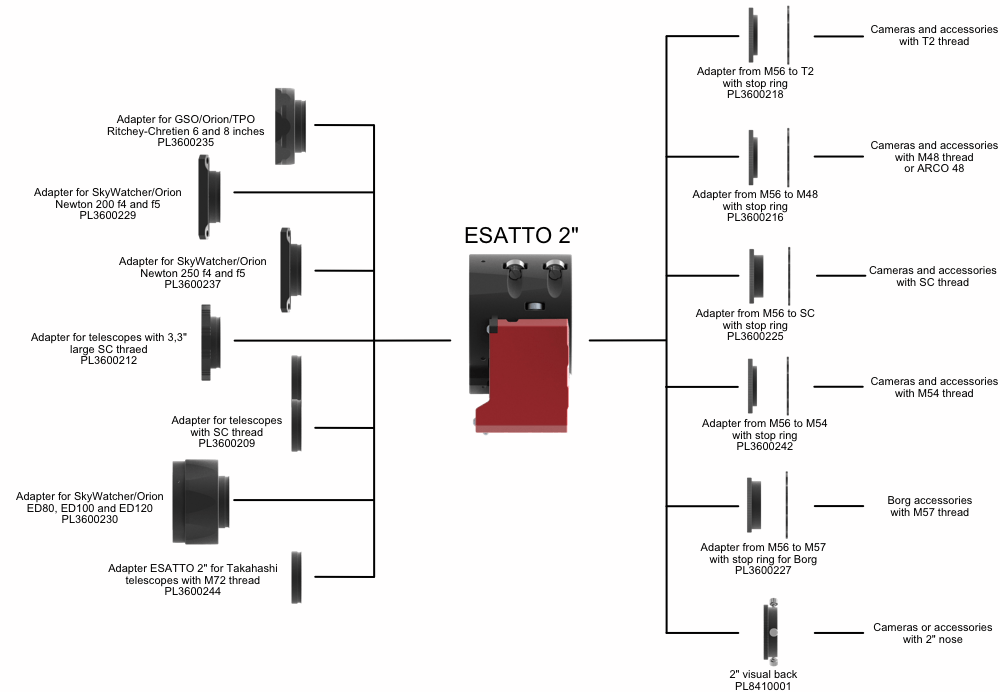

Many adapters available to connect to many telescopes

You don’t need to worry on how to connect ESATTO to your telescope – You can choose among the many models and adapters available! You can easily connect ESATTO 2 inch to telescopes like Schmidt-Cassegrains, Aplanatic Schmidt-Cassegrains, refractors, Cassegrains, Newtonians, and more! ESATTO truly is the universal focuser and if you can’t find an adapter for your telescope, just contact us!

Designed for remote control via a USB-C port from the EAGLE or from any Windows computer with a standard USB port

ESATTO has been specifically designed for easy remote operation in order to let your telescope take advantage of all the latest technology in astrophotography. ESATTO comes with a sturdy USB-C port (which you can connect to any USB type port thanks to the cable included in the box) to connect to EAGLE or any Windows computer, and control it via the provided ESATTO software or ASCOM driver. When connected to one of the USB3.0 ports on the EAGLE (or USB 3.0 ports of Windows computers capable of at least 1A), the ESATTO can be powered and controlled via the one cable!

Designed for remote control via WiFi, from any smartphone, tablet or computer via the ESATTO Virtual HandPad app

ESATTO has built-in WiFi remote control capability so you can control it from any smartphone, tablet or computer! Just connect your device to the WiFi network of ESATTO and start the app – You will be able to control the focuser by using the dedicated ESATTO Virtual HandPad app. Thanks to convenient preset settings, you can easily record and move the focuser to specific predetermined positions – Great for visual use!

Focuser draw tube with M56x0.75 thread and stop ring for a perfect camera connection

We know that a perfect focuser is nothing without a solid connection to the camera. That’s why, instead of using a normal 2 inch visual back, ESATTO 2″ offers a M56x0.75 male thread (to let you attach SkyWatcher/Orion reducers for ED 80, 100 and 120 refractors) and, through a complete series of optional camera adapters with stop ring, it allows you to directly connect the most common DSLR, mirrorless and CCD or CMOS cooled cameras  directly at the focuser. The stop ring allows you to lock the camera at a precise angle to better frame the object to be photographed. The stop ring adapters are available in many different sizes: this way you can connect, with maximum rigidity and comfort, any camera or accessory.

Connect with a single cable to ARCO to remotely control also your robotic camera rotator

ESATTO includes a special port allowing ARCO, the robotic camera rotator, to be directly connected. With ARCO, you can remotely control the rotation angle of your camera in order to achieve perfect framing of the object you want to record. ESATTO and ARCO are designed to work together – You will need only one short interconnect between the two!
