Nieuwe uitvoering van de GM2000 HPS II, de combi uitvoering

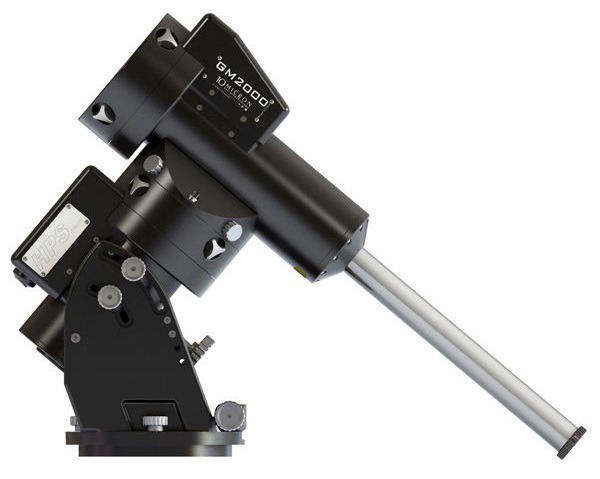

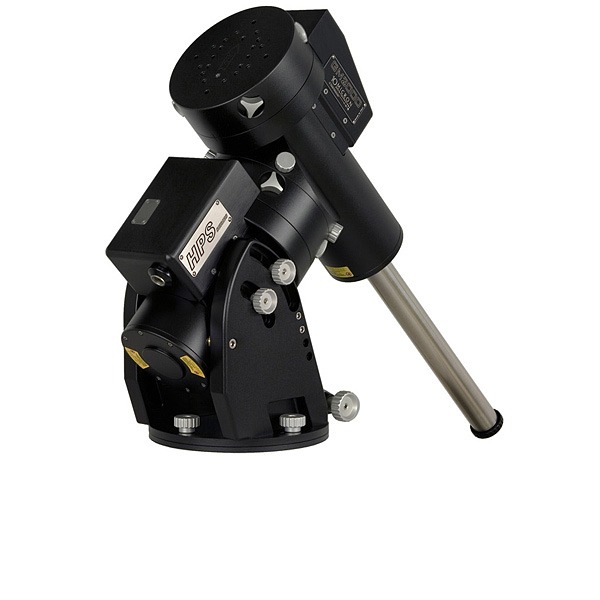

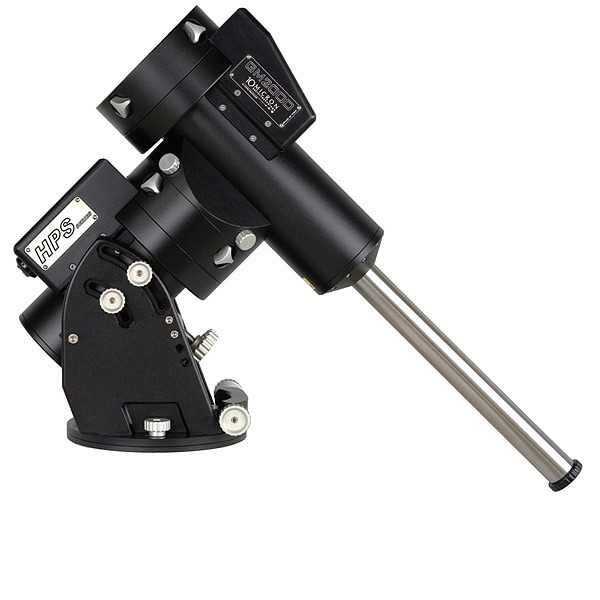

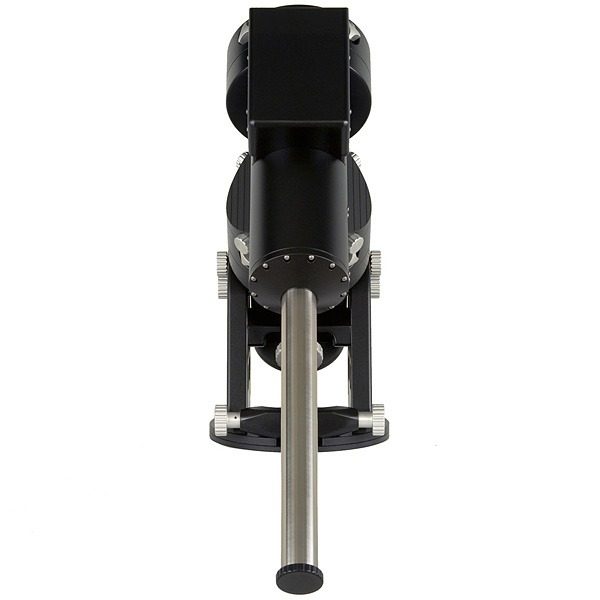

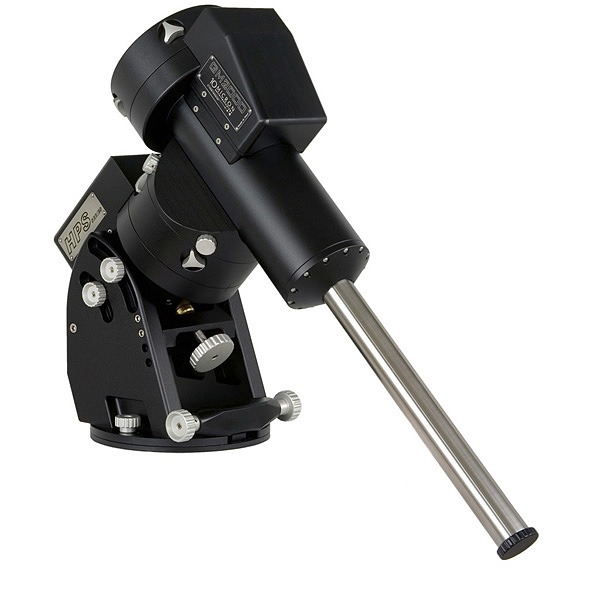

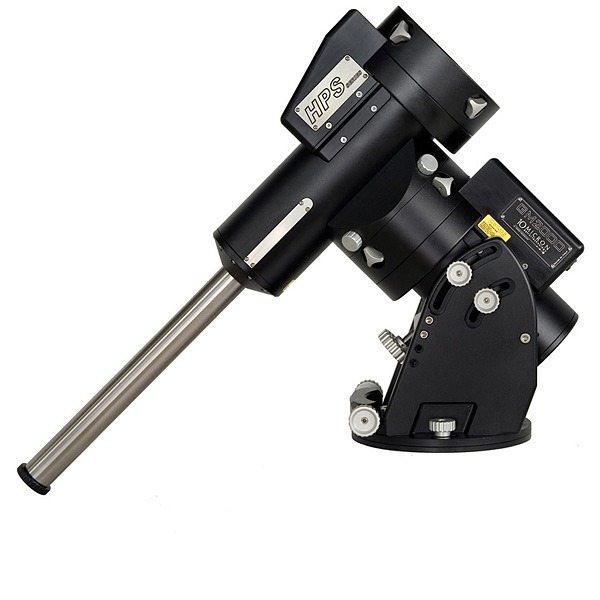

The 10Micron GM2000 HPS II COMBI combines the solid stability of the GM2000 HPS II Monolith with the portability of the GM 2000 HPS II Ultraport. These two mounts are no longer produced and will be replaced by this successor model.
The “COMBI” is basically an “Ultraport” (“splittable” in two parts ) with an additional locking system; next to the quick locking system, which is very useful to carry and assemble the mount in the field, we added a further locking system. This is meant for customers who have the mount permanently installed in an observatory. It will ensure a great long-term stability, comparable to a GM2000 HPS II Monolith.
You can easily revert the mount into a portable (“splittable”) version simply by removing the locking screws. This way the new GM2000 HPS II COMBI combines both advantages of the previous models in one single mount!
The technical specifications, sizes and weight of the GM 2000 HPSII Combi are exactly the same as of the GM 2000 HPS II Ultraport.
HPS II
HPS stands for High Precision and Speed and the mount is an advancement of the known GM 2000 QCI of 10Micron with the same proven mechanics, however, less load-carrying capacity than this – and with it highly transportable.
The GM 2000 HPS reaches a Satellite tracking and positioning speed from 20 degrees / sek. with an average positioning accuracy <20″ and a tracking accuracy of approx. 1″/15min (peak to peak).
The GM 2000 HPS disposes, in addition, of high-precision Absolut-Encoders on both axes which opens absolutely new possibilities. The mount never loses its orientation, even if one axis is shifted by hand. Also after a power failure no new Alignment is necessary. In field use the mount is quicker and easier to install and to align than any conventional equatorial mount.
De levering van de 10Micron GM2000 HPS II COMBI omvat:
- GM2000 HPS II Mount with built-in precision absolute axis-encoders

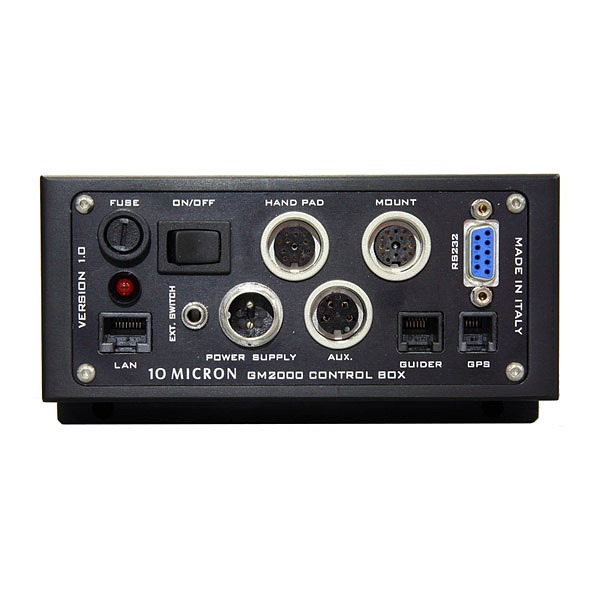

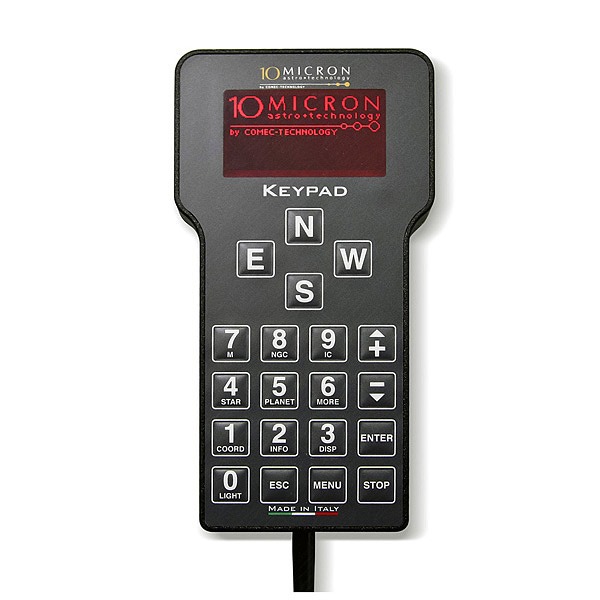

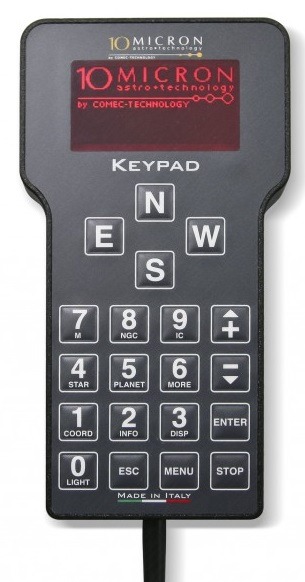

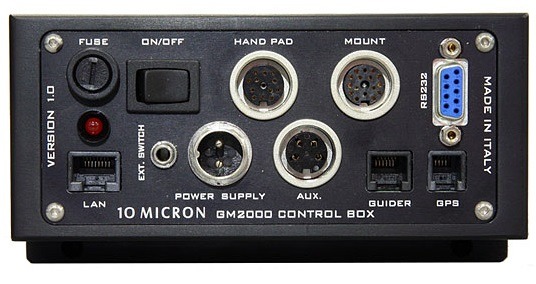

control box with onboard-intelligence (Linux-processor),V. 2 – HPS version firmware, stand alone system (no PC required) - 4-Lines Stand-Alone Keypad with metal housing and heated screen (#1452059)
- embedded Computer-Controller with Linux Managment System for complete remote use of the mount incl. all functions such as satellite tracking, moon feature and more
- Interface: RS232, Ethernet, Wi-Fi
- Connectors for: GPS, Autoguider, Keypad, Mount, Aux and Remote Switch
- Connection cables, counterweight bar
- PC Software: Virtual Keypad, Clock Sync Tool, Multi Mount, ASCOM Driver
- Instruction manual
Technische specificaties:
- Mount Type: German Equatorial Mount
- Weight (mount w/o acc.): ~ 18,5 kg – 40 lbs + ~15 kg – 33 lbs (without accessories) Total = ~ 33,5 kg – 73 lbs
- Instrument Payload Capacity (kg): 50 kg – 110 lbs
- Latitude Range: 20° – 70°
- Azimuth fine adjustment range: +/− 10°
- Counterweight shaft: 40 mm diameter, stainless steel, weight 1.7 kg – 3.7 lbs
- Axes: 50 mm diameter, alloy steel
- Bearings: Pre-loaded tapered roller bearings
- Worm wheels: 215 teeth, 172 mm diameter, B14 bronze
- Worms: 24mm diameter, tempered alloy steel, grinded and lapped
- Motors: 2 axes AC servo brushless
- Power supply: 24 V DC
- Power consumption: ~ 0,7 A while tracking ~ 3 A at maximum speed ~ 5 A peak
- Go-to speed: Adjustable from 2°/s to 20°/s
