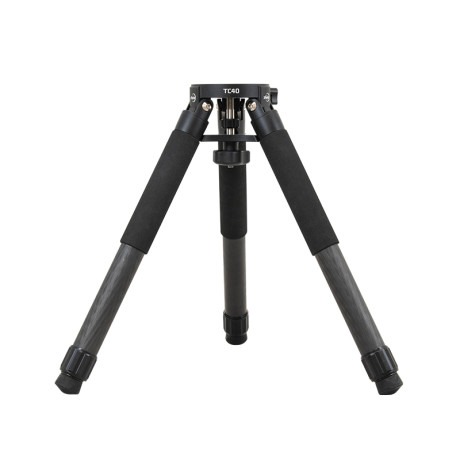

ZWO TC40 tripod

Description

ZWO’s new tripod for the recently released ZWO AM5 mount, among others

ZWO recently introduced a new mount based on the latest harmonic drive technology. ZWO has also developed a matching tripod: the ZWO TC40 tripod (carbon fiber). Features of this tripod include the following highlights:

• Portable.
• Stable.
• Durable.
• …And more!

Some key specifications

• Weight: 2.3kg
• Load capacity: 50kg
• Folded length: 500mm
• Adjustable height: 470mm-1800mm
• Sections: 2
• Leg diameter: upper part 40mm / lower part 36mm

Lightweight design with large carrying weight

The ZWO carbon fiber tripod is excellently portable, made from tremendously strong construction and features high impact resistance.

• Tripod weight: 2.3kg
• Carrying weight: 50kg

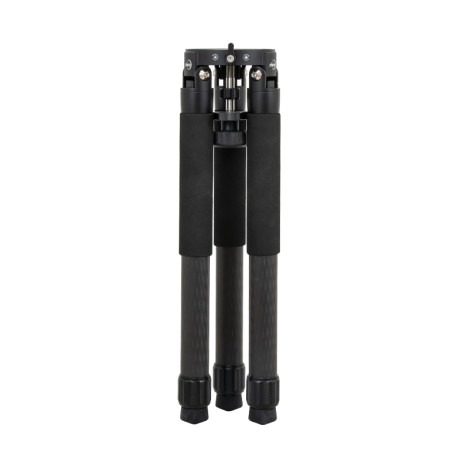

As a result, this tripod is easy to carry. The TC40 tripod can be folded for easy transport in your carry-on luggage.

Adjustable height

The height is adjustable between 470mm and 800mm. Two-piece legs provide a stable and rigid platform for both telescopes and cameras, and of course any other accessories you want to connect to your setup.

Specifications tripod leg diameter:

• Upper part: 40mm
• Lower part: 36mm

This results in the configurable options below:

Stable performance

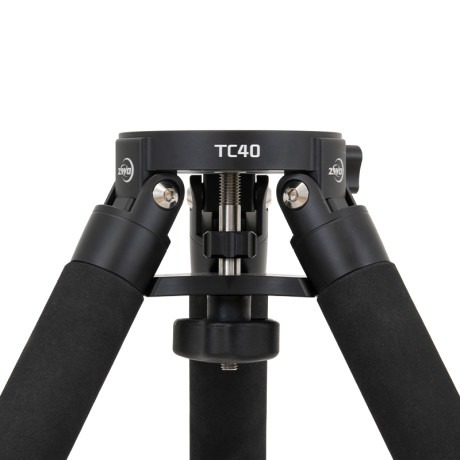

Tripod head plate: the adapter plate provides three mounting points to fit the AM5 head. The connection will be very stable and firm.

Mounting points. Safe lock

Central locking button

The center 3/8″ locking knob offers a wide range of compatibility:

• Keep it standard: for use with the AM5 head.
• Hold upside down: for quickly attaching other holders with a 3/8″ threaded hole to the tripod.
• Secure locking: effectively reinforces the connection of the mounting head and tripod

Spreading plate of the ZWO TC40 tripod

The spreader plate increases stability. When you tighten the knob, the spreader plate is pushed up against the legs. As a result, you spread the legs well and lock them in place.

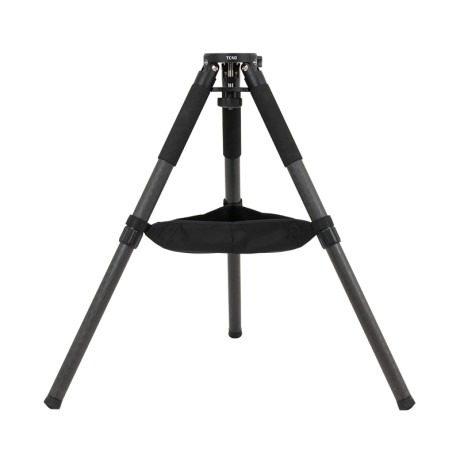

Ballast bag of the ZWO TC40 tripod

Provides additional stability by filling the ballast bag with a suitable weight such as rocks or your telescope battery pack.

Delivery of the ZWO TC40 tripod includes:

• Tripod
• Ballast bag for the tripod

Compatibility with other mounts

• iOptron GEM45
• iOptron GEM40
• Rainbow Astro RST-135E
• Sky-Watcher AZ-GTi
• Compatibility capabilities many other mounts(contact us for a compatibility check)

Schematic view

Example full assembly

See below an example of the complete assembly of the ZWO AM5 Harmonic equatorial mount mounted on the ZWO TC40 tripod with a Celestron telescope:
