ZWO EAF Advanced 5V Motor Focus USB Powered

Description

Description of the ZWO EAF Advanced 5V Motor Focus USB Powered

Get to know the 5V EAF: the latest innovation from the engineers at ZWO. With the introduction of 5V EAF, this electronic focuser, like its previous version, enables precise, dynamic focus control for planetary and deep sky imaging. And that while it is only connected to 5V USB!

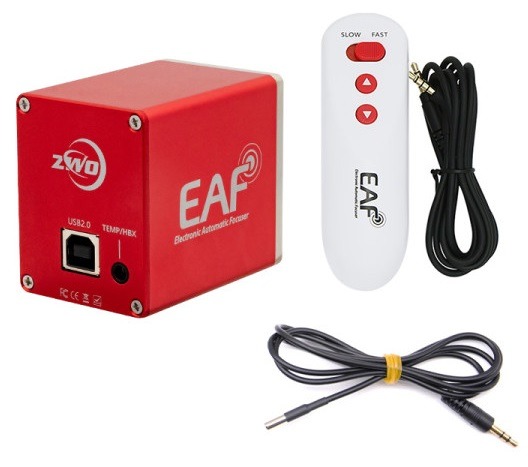

The Advanced version comes with a hand controller and temperature sensor. Handy if you want to focus yourself with visual perception, for example. The hand controller allows you to move back and forth and set fast or slow motion.

Features of the ZWO EAF

The EAF is one of the latest innovations of the ZWO brand. Characteristics:

• Highly integrated design
• ASCOM platform and various ASCOM-compatible third-party software support
• INDI support
• Supports original software such as ASIAIR and ASICAP
• Automatic focus support
• Hand controller and manual focus support
• Temperature sensor support
• USB HID device and disk free
• Stable and durable
• Standard equipment: EAF housing, flexible coupling, motor bracket, USB2.0 cable.

Support

• SkyWatcher Astrophotography Reflectors, Black Diamond, Dobsonians, Maksutov-Newtonians
• SharpStar telescopes
• SkyRover telescopes
• TS Optics
• Astro Tech
• Feather Touch
• Celestron Schmidt Cassegrain
• William Optics

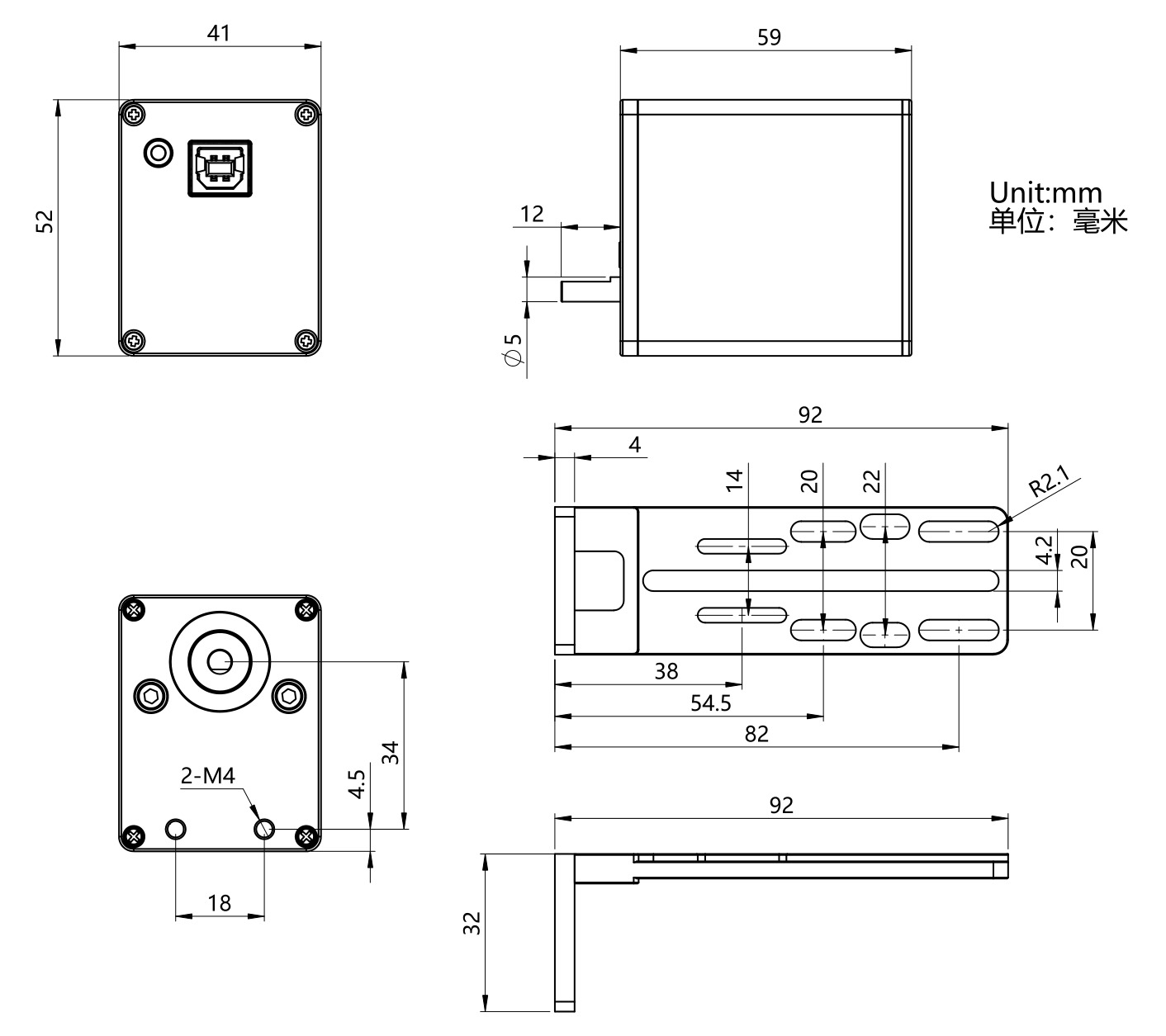

Specifications

• Dimension: 59mm x 52mm x 41mm
• Motor: Stepmotor, 35 mm diameter, 7.5° step angle
• Power-/Datapoort: USB 2.0 poort – Type B
• Weight: 277 grams
• Capacity: 5 kg

The necessary brackets

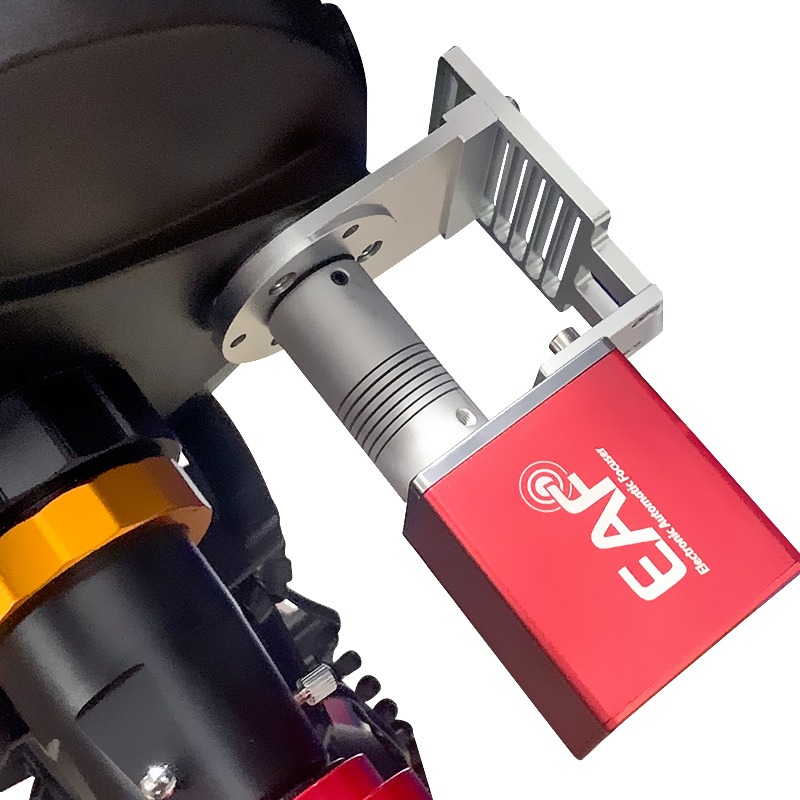

With the arrival of all kinds of adapters, the ZWO EAF can be mounted on almost all telescopes. The motor has already been fitted to many refractors, but now there are also wonderful solutions for Celestron’s Schmidt Cassegrain telescopes. The mounting of the motor focus is really not that bad. With a little insight, it certainly works. Below is a summary of which Celestron SCT telescopes this applies to and which bracket you need:

Correct Bracket: #ZWO-EAF-C8-C925

• Celestron 8 inch
• Celestron 8 inch EDGE HD
• Celestron 8 inch RASA
• Celestron 9.25 inch
• Celestron 9.25 inch EDGE HD

Correct Bracket: #ZWO-EAF-C11-C14

• Celestron 11 inch
• Celestron 11 inch EDGE HD
• Celestron 11 inch RASA V2 (non Feather Touch Focuser)
• Celestron 14 inch
• Celestron 14 inch EDGE HD

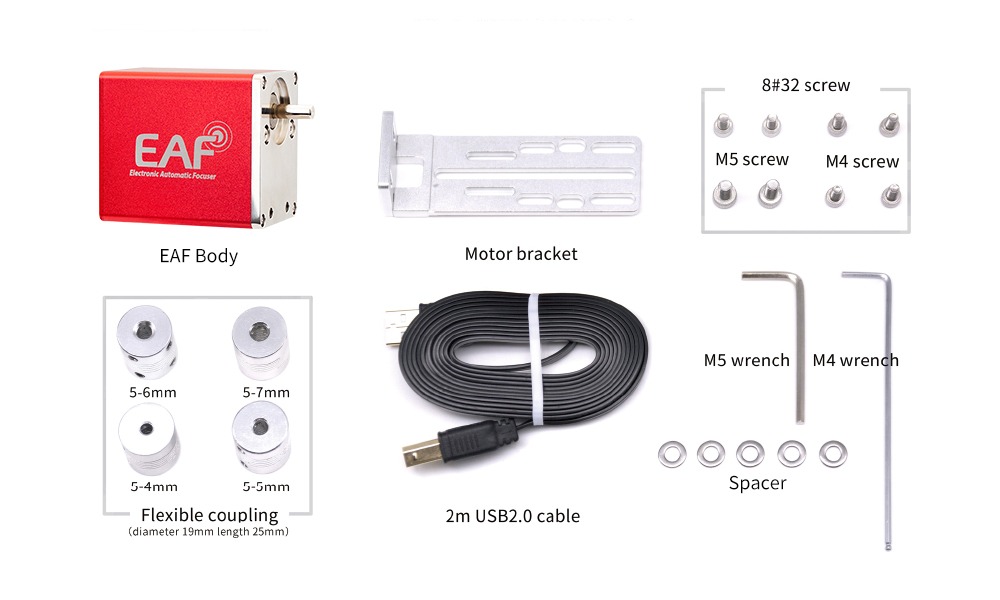

Delivery of the ZWO EAF Advanced 5V Motor Focus USB Powered includes:

• EAF 5V Motor Focus
• Flexible connection
• Motor bracket
• USB 2.0 cable
• Handcontroller
• Temperature sensor
• Various mounting material
