Description

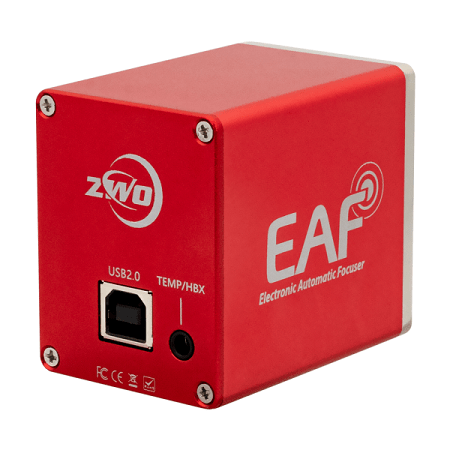

Introducing the ZWO EAF 5V Motor Focus USB Powered
Meet the latest ZWO EAF 5V Motor Focus USB Powered, the latest innovation from the engineers at ZWO. Like its previous version, this electronic focuser enables precise, dynamic focus control for planetary and deep-sky imaging. And all this while only connected to 5V USB.
Characteristics
- Highly integrated design
- ASCOM platform and various ASCOM-compatible third-party software support
- INDI support
- Supports original software such as ASIAIR and ASICAP
- Automatic focus support
- Hand controller and manual focus support
- Temperature sensor support
- USB HID device and disk free
- Stable and durable
- Standard equipment: EAF housing, flexible coupling, motor bracket, USB2.0 cable.
Support
- SkyWatcher Astrophotography Reflectors, Black Diamond, Dobsonians, Maksutov-Newtonians
- SharpStar telescopes
- SkyRover telescopes
- TS Optics
- Astro Tech
- Feather Touch
- Celestron Schmidt Cassegrain
- William Optics
Specifications
- Dimension: 59mm x 52mm x 41mm
- Motor: Step motor, 35mm diameter, 7.5° step angle
- Power/Data Port: USB 2.0 Port-Type B
- Weight: 277 grams
- Capacity: 5 kg
Brackets
With the arrival of all kinds of adapters, the ZWO EAF can be mounted on almost all telescopes. The motor has already been fitted to many refractors, but now there are also wonderful solutions for the Schmidt Cassegrain telescopes from Celestron. The mounting of the motor focus is really not that bad. With a little insight, it certainly works. Below is a summary for which Celestron SCT telescopes this applies and which bracket you need:
Correct Bracket: #ZWO-EAF-C8-C925
- Celestron 8 inch
- Celestron 8 inch EDGE HD
- Celestron 8 inch RASA
- Celestron 9.25 inch
- Celestron 9.25 inch EDGE HD
Correct Bracket: #ZWO-EAF-C11-C14
- Celestron 11 inch
- Celestron 11 inch EDGE HD
- Celestron 11 inch RASA V2 (non Feather Touch Focuser)
- Celestron 14 inch
- Celestron 14 inch EDGE HD
Delivery of the ZWO EAF 5V Motor Focus includes:
Mechanical diagram
