ZWO ASIAIR Pro WiFi control

Description

ZWO ASIAIR Pro WiFi control

ASIAIR PRO is a smart WiFi device. It is equipped with a lightweight power management module, spacious USB interfaces and multiple dovetail mounting methods. With the rich features of the ASIAIR app, the whole process from device integration to image capture is extremely smooth. ASIAIR PRO is the second generation of ZWO, which has been continuously improved and redesigned since the first generation of ASIAIR was released in July 2018.

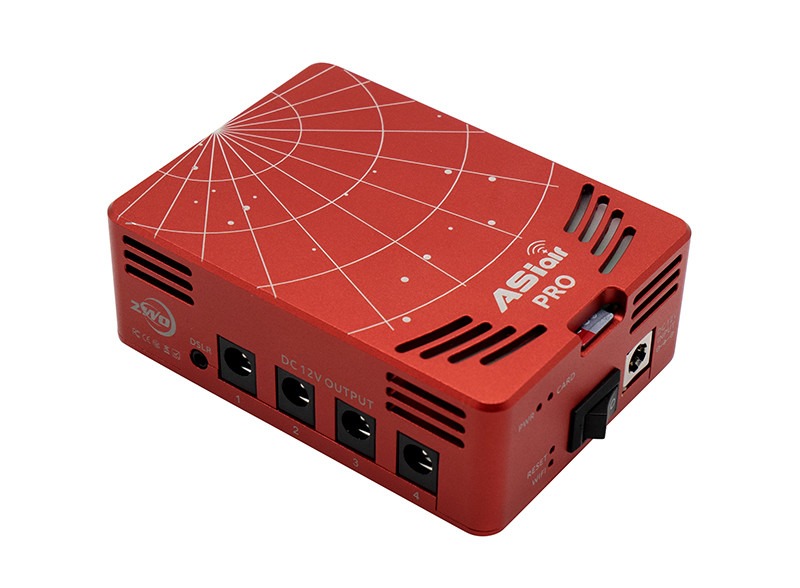

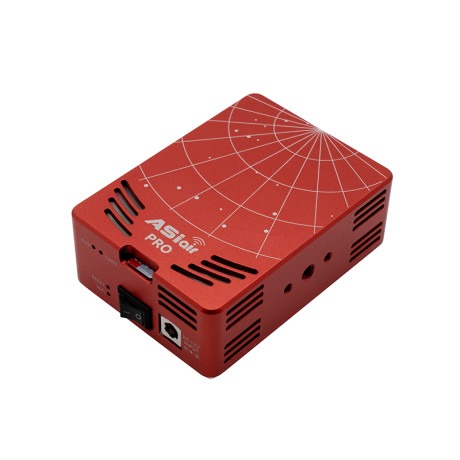

Exquisite craftsmanship with a beautiful appearance, the ASIAIR PRO housing is made of aluminum and fabricated with CNC technology. After the surface is anodized, it not only protects the case well, but also feels comfortable. The size of the whole cabinet is only 92 x 67 x 35 mm, making the size and weight excellent and easy to grip by hand.

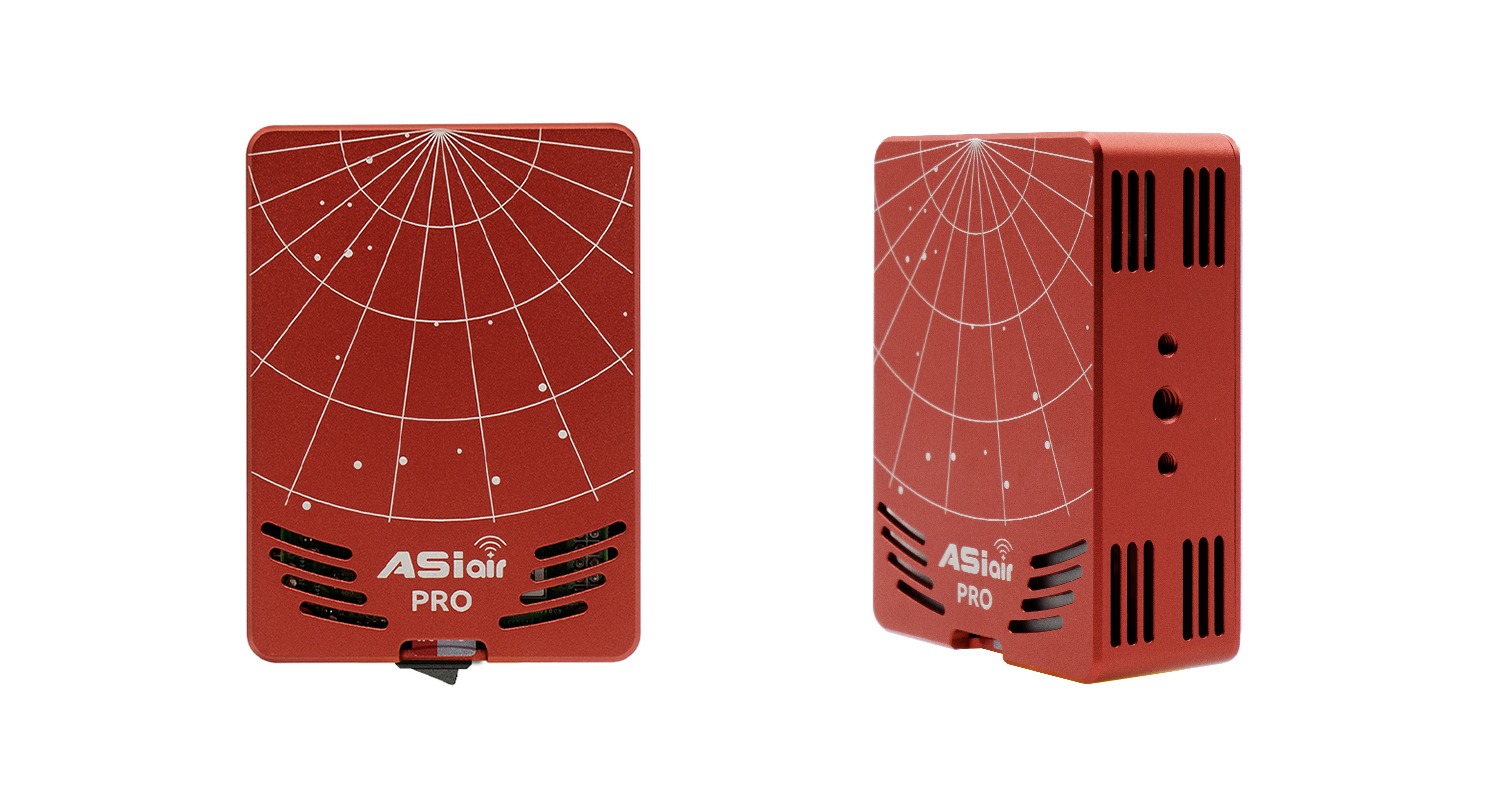

The slot/port position of ASIAIR PRO is nice and symmetrical, with M4 and 1/4 inch openings on the bottom and side. Using the dovetail (optional) makes installation and removal easy. The whole machine has bright, vibrant reds. Although the front is painted with laser star charts of the Ursa Minor and Ursa Major constellations, which is very beautiful.

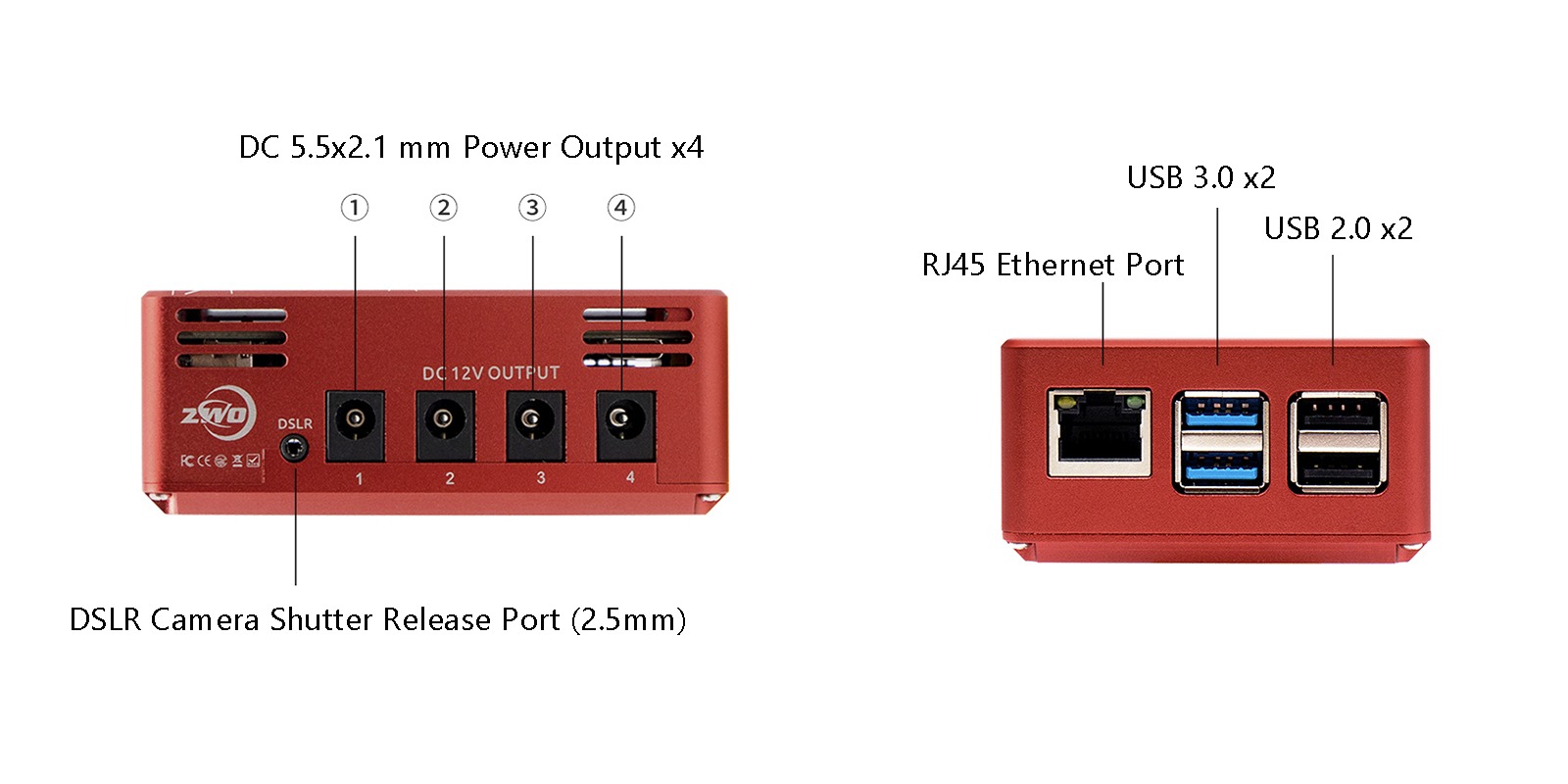

ASIAIR PRO is equipped with a lightweight power supply module. There are four DC 5.5 x 2.1mm power outputs on the side of the housing, a DSLR shutter input, two USB 2.0 and USB 3.0 ports each. The power supply is stable and reliable, the interface is rich and diverse, and the wiring is simple and orderly. The ZWO ASIAIR Pro also comes with 84 GB of free storage, so that enough data can be stored.

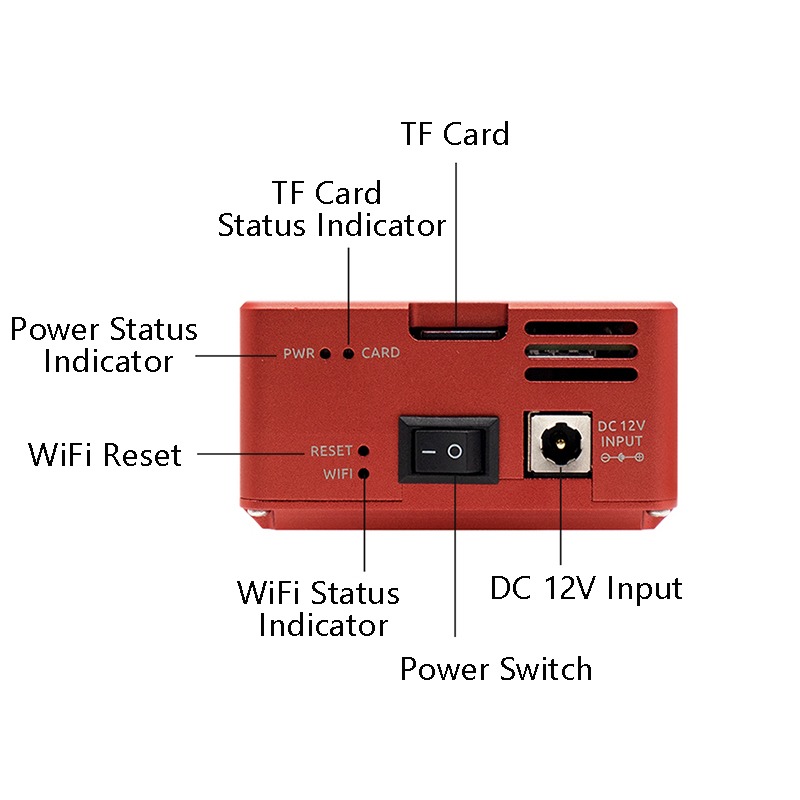

The LEDs clearly display the working status. In addition, it has the key operation warning key, which makes the whole operation under control.

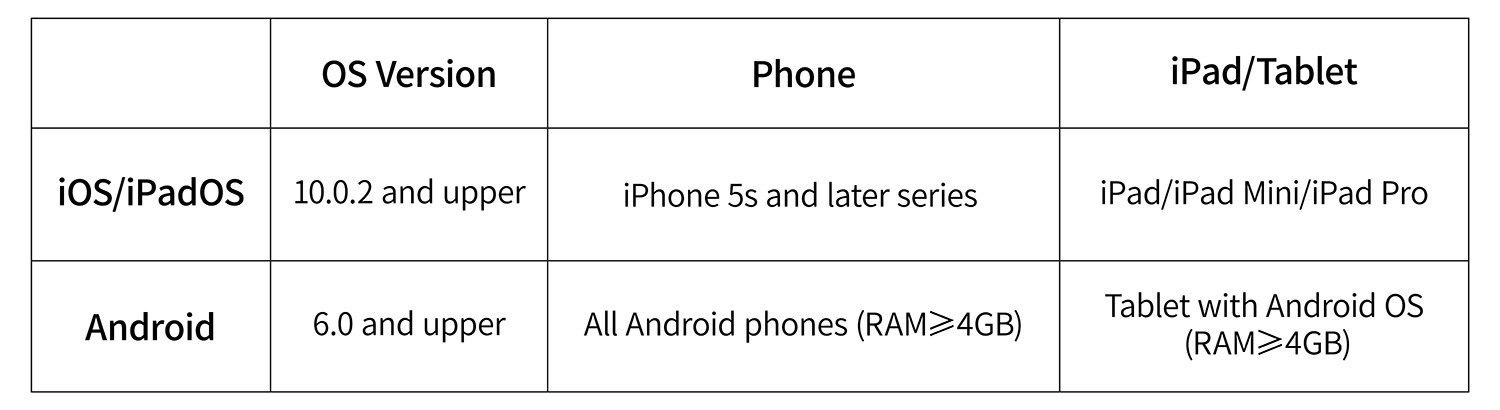

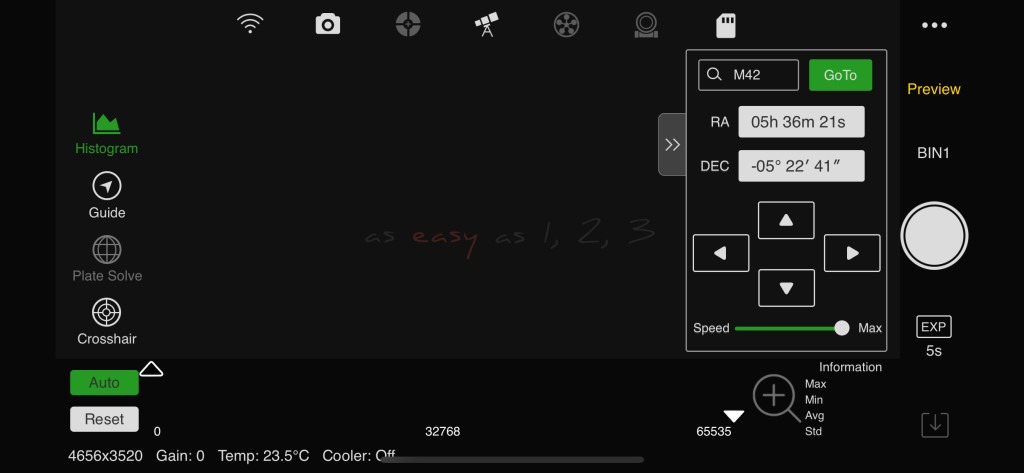

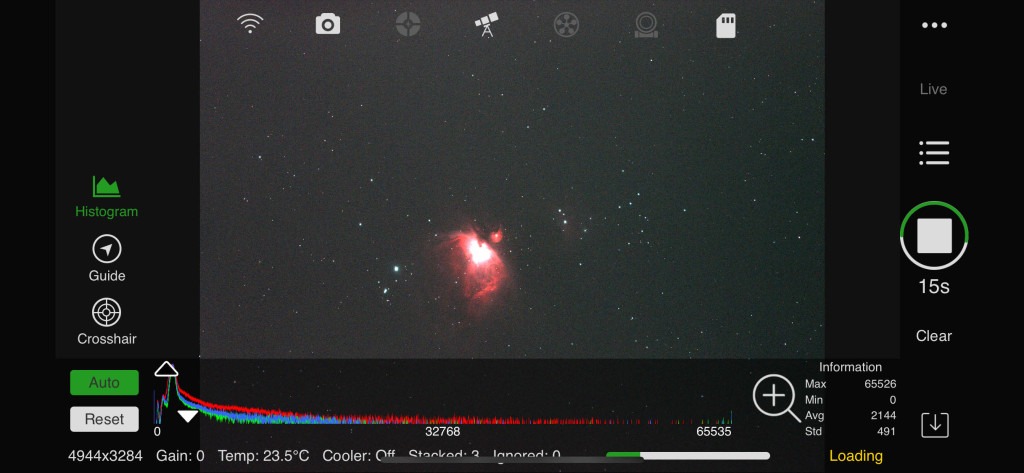

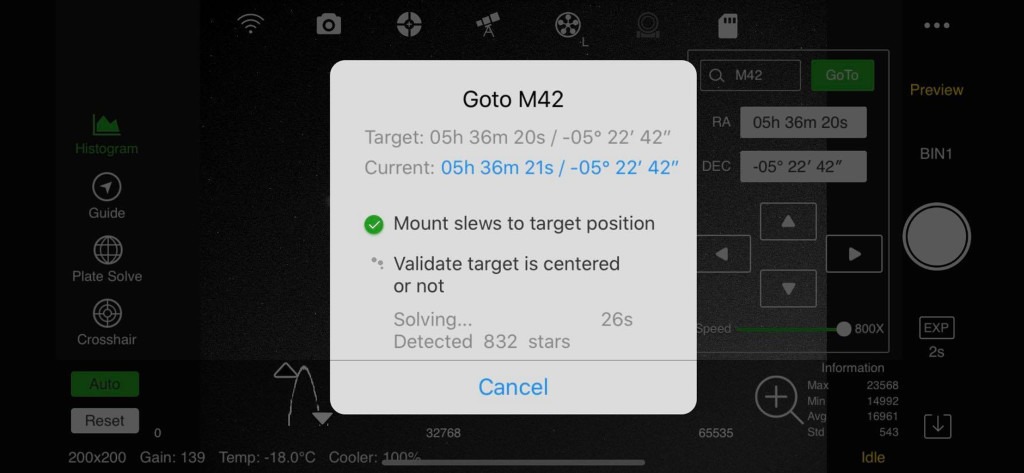

ASIAIR supports both iOS and Android systems.

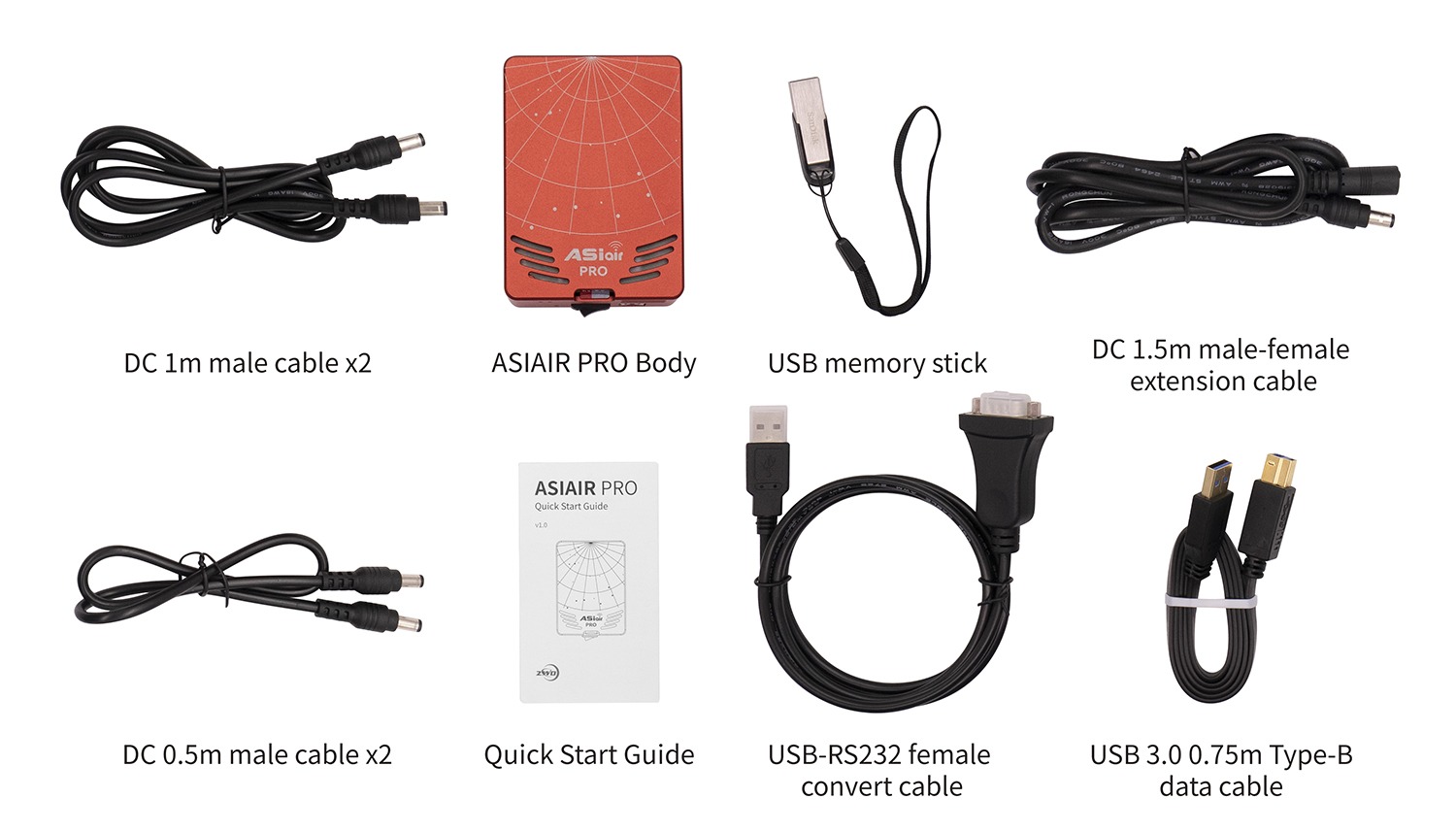

Delivery of the ZWO ASIAIR Pro WiFi control includes:

1. DC male 1m cable x 2
2. ASIAIR PRO body
3. 64GB USB memory stick
4. DC 1.5m male and female cable extension cable
5. DC male 0.5 m cable x2
6. Quick Start Guide
7. USB-RS232 female covert cable
8. USB 3.0 square port 0.75m data cable

Note:

Neither USB flash drive nor TF card is covered by Warranty Policy

Note: the ASIAIR Pro does not support the ASI 120 MM/MC USB 2.0!
Text from the ZWO site: supported cameras are ASI USB3.0 cameras, ASI cooled cameras, ASI mini cameras and DSLR cameras (It can not support ASI120MM/MC camera).

Note: SkyWatcher mounts may require an EQDir cable. The connection with the USB-RS232 cable does not always work!
