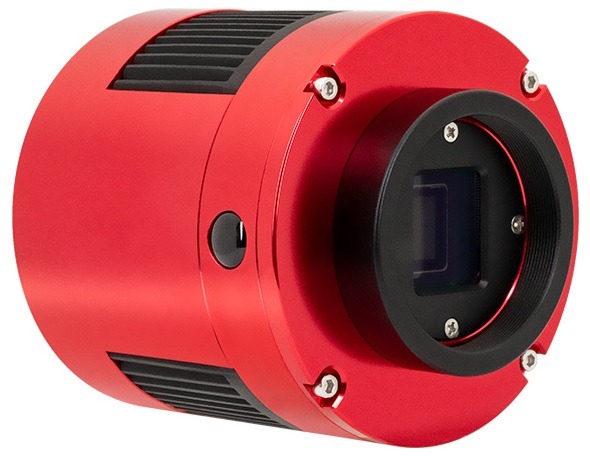

ZWO ASI533MM Pro Mono camera cooled

 1.439,00

Betaal de eerste termijn direct via iDEAL. De tweede en derde termijn betaal je binnen 30 en 60 dagen. Zonder rente, zonder BKR-registratie! Klik voor meer informatie

The ZWO ASI533MM Pro camera is seen as an upgrade of the ASI183MM Pro camera. With the 533MM, for example, you no longer have an amp glow, but the renewed sensor brings even more benefits. This camera is generally well suited to shorter focal length configurations (such as a smaller refractor). Read more below in our detailed description.

In stock (can be backordered)

Sensor kind:
CMOS
Sensor size:
1"
Sensor dimensions:
11.31 x 11.31
Sensor type:
IMX533
Sensor diagonal (mm):
15.968
Color or Mono:
Monochrome
Megapixels (M):
9
Resolution:
3008 x 3008
 1.439,00
3 op voorraad
Available
SKU: ZWO ASI533MM-P Categories: , , ,
Physical store
100% safe shopping
Large stock
Delivery service

Description

Perfect first camera to start shooting monochrome.

The ZWO ASI533MM Pro Mono cooled astronomy camera is equipped with Sony’s CMOS IMX533 1 inch format sensor with a square aspect ratio. With a resolution of 9.0 megapixels, this camera has 3.76 µm pixels for a high signal-to-noise ratio for shooting deep-sky celestial objects. It is also ideal for fast, high-resolution lunar, solar and planetary photography. For example, a small telescope with a focal length of 400mm gives a field of view with this camera of 1.6 degrees square. A telescope with a focal length of 1500 mm length gives a field of 0.43 degrees square.



ZWO ASI533MM Pro Mono camera cooled
Technical specifications of the ZWO ASI533MM

State-of-the-art Sony IMX533 sensor with backlight

ZWO designed the ASI533MM-Pro camera around Sony’s IMX533 9-megapixel CMOS sensor with 16 mm diagonal (11.31 mm x 11.31 mm) with a 3008 x 3008 pixel array. Each pixel measures 3.76 microns on each edge. The sensor’s square format is ideal for framing many symmetrical deep sky objects, such as globular and open star clusters, planetary nebulae and many emission nebulae. But many smaller galaxies can also be done perfectly with this camera.

Sony’s backlit CMOS image sensor improves sensitivity and noise reduction. The key factors for improving image quality while radically realigning the fundamental pixel structure from front lighting to back lighting. It has kept the advantages of CMOS image sensors such as low power consumption and fast operation.

With a conventional front lighting structure, the metal wiring and transistors on the surface of the silicon substrate hinder. Which form the light-sensitive area of the sensor (photodiode), collecting photons through the on-chip lens. A backlit structure increases the amount of light entering each pixel due to the lack of obstacles. Such as metal wiring and transistors moved to the back of the silicon substrate. The pixels have a capacity of 50000e to help you capture sharp images of bright stars without saturation. This illuminated sensor has a high estimated QE of 91%. Read noise is as low as 1.0e.

ZWO ASI533MM Pro Mono camera cooled
Front of the ZWO ASI533MM
ZWO ASI533MM Pro Mono camera cooled
Quantum Efficiency of the ZWO ASI533MM-P

Zero Amp Glow with the ZWO ASI533MM Pro Mono camera cooled

Traditional CMOS sensors produce a weak infrared light source during use that is often seen in the corner of uncalibrated images. Since the ASI 533 MM-Pro uses a zero amp glow circuit, you don’t have to worry about the amp glow. Not even when using high gain, long exposure imaging.

ZWO ASI533MM Pro Mono camera cooled
Compare with and without ampglow

DDR3 memory buffer and fast data transfer

The camera’s ‘Pro’ designation comes from the internal 256MB DDR3 buffer for fast and stable data transfer and reduced amplifier flare. The USB3.0 port provides a fast 20 fps recording rate at full resolution with 14-bit ADC.

TEC sensor cooling and anti-dew heater

The two-stage TEC cooling system brings the sensor temperature to 35 degrees below the ambient temperature. This is to keep the sensor noise as low as possible, even on warm nights. The heat generated by the TEC is used to prevent dew from forming on the camera’s protective glass. The camera’s TEC cooler requires 12V-3A, provided with an external power supply (not included). If the camera is powered from a USB2.0 host, the external 12V power supply is also required.

Excellent performance with low noise

The ASI533MM-Pro camera has a dynamic range of 8 to almost 14 stops, depending on the gain settings. At a gain of 100 you get 13 stops of dynamic range with a read noise of only 1.5 e. At higher gains, read noise can be as low as 1.0e, making this an ideal camera for electronically assisted astronomy (EAA).

USB3.0 data ports and USB2.0 hub

The camera’s electronics, except for the cooler, are powered entirely from the USB3.0 port. This TEC cooler requires 12V-3A with an external power supply (not included). The ASI533MM-Pro also includes a USB2.0 hub for powering accessories such as a guide camera or focus motor ( EAF).

ZWO ASI533MM Pro Mono camera cooled
Back of the ZWO ASI533MM

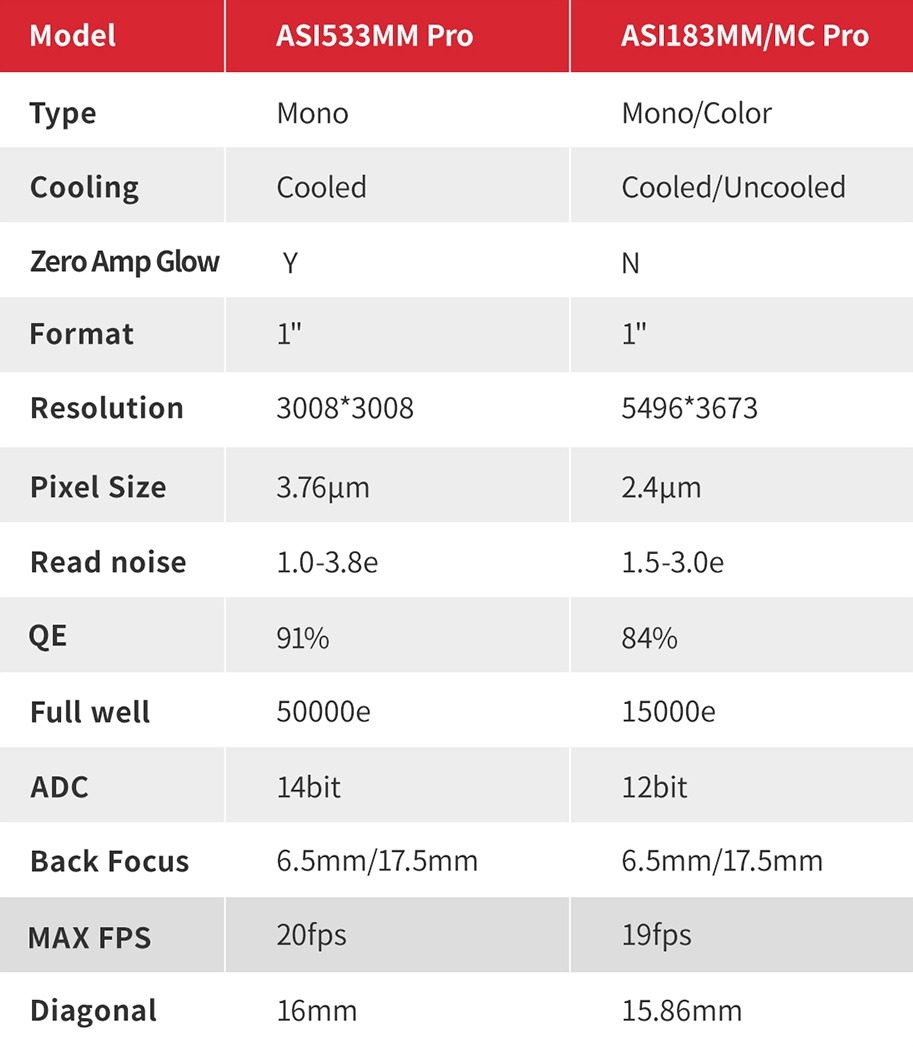

Upgrading from the ZWO ASI183MM Pro to the ZWO ASI533MM Pro Mono camera cooled comparison table

ZWO ASI533MM Pro Mono camera cooled

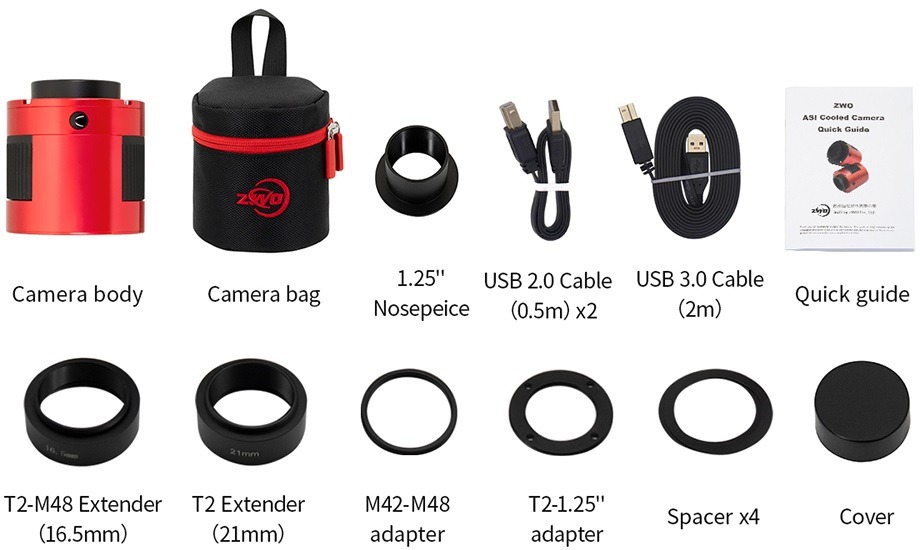

Delivery of the ZWO ASI533MM Pro Mono camera cooled includes:

Place your order online or visit the store

Have you found what you are looking for and do you want to order the ZWO 533MM Pro, for example? Then you can do this very easily online. Would you rather see these products in person before buying them? That is also possible with us. You are most welcome in our showroom in Amstelveen from Monday to Friday between 10:00 and 17:00. The showroom is also open on Saturdays, but from 10 a.m. to 4.30 p.m. For more information and advice you can also contact us by phone on 020-6412083. We are happy to help you.

Specifications general

State:
New

Brand:
ZWO

Series:
ASI533

Warranty:
2 years

Part number Ganymedes:
ZWO ASI533MM-P

Part number manufacturer:
ZWO ASI533MM-P


Specifications product

Sensor kind:
CMOS

Sensor size:
1"

Sensor dimensions:
11.31 x 11.31

Sensor type:
IMX533

Sensor diagonal (mm):
15.968

Color or Mono:
Monochrome

Megapixels (M):
9

Resolution:
3008 x 3008

Pixel size (microns):
3.76

Maximum frames per second (FPS):
216.45

Memory:
256MB DDR3

Number of bits (ADC):
14

Protective glass:
D32-2-AR

Shutter:
Rolling

Exposure time:
32μs-2000s

Read noise:
1.0-3.8e

QE peak:
91%

Full well:
50000e

Active cooling:
Yes

Connection to computer:
USB 3.0

Connection to telescope:
M48

ST4 connection:
No

Included adapters:
T2-M48 16.5mm / T2 21mm extension / M42-M48 adapter / T2-1.25 inch adapter / Spacer x3

Included cables:
USB 2.0 / USB 3.0

Length (mm):
77.5

Diameter (mm):
78

Weight (kg):
470

Backfocus (mm):
17.5

Application:
Nebulae and Galaxies

Built-in filter wheel:
No

Power supply:
12v


Application

Suitable for moon and planets:
Good

Suitable for nebulae and galaxies:
Excellent

Suitable for sun:
Good

Suitable for autoguiding:
Moderate

Suitable for All-Sky:
Moderate

Suitable for children:
No

Suitable for novice user:
Yes

Suitable for advanced user:
Yes
