ZWO ASI 174MM (mono) 1936×1216 5.86µm

Description

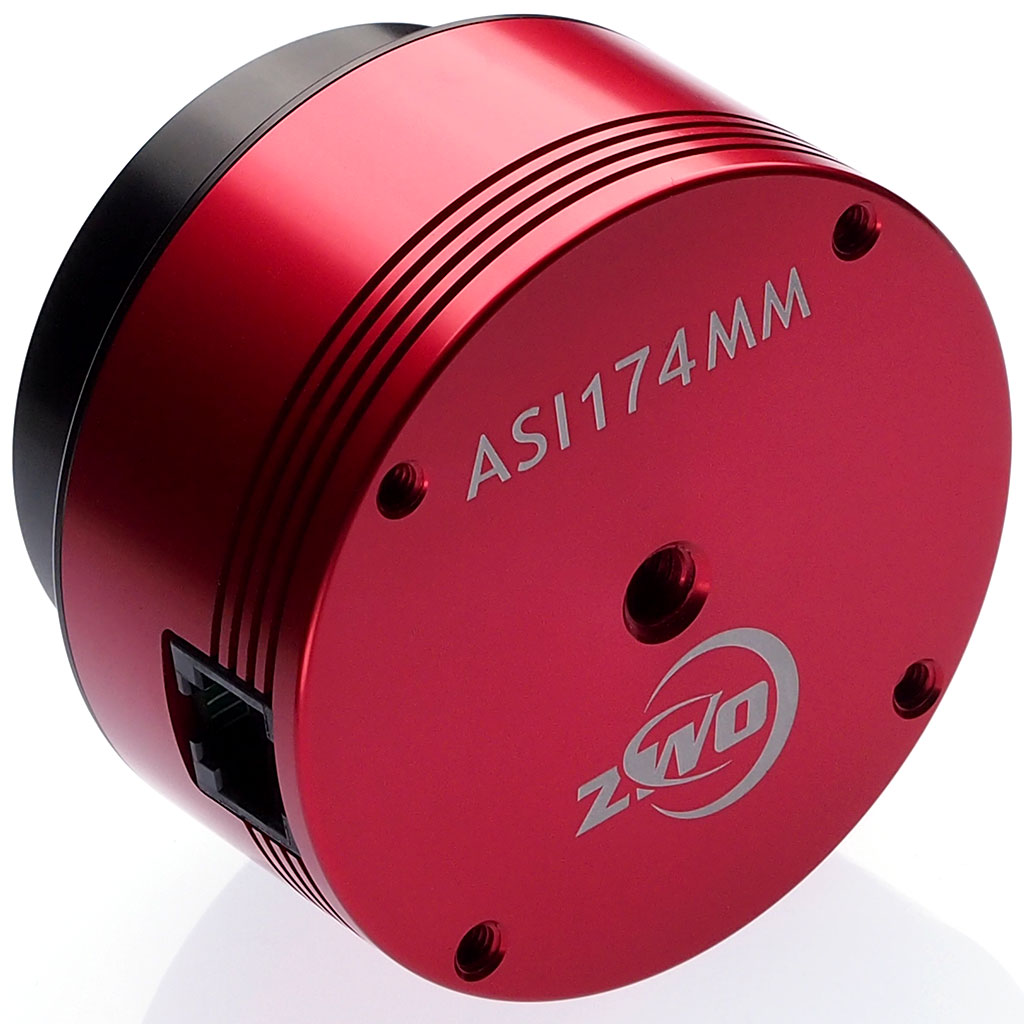

Introducing the ZWO ASI 174 mm (mono) 1936×1216 5.86µm camera

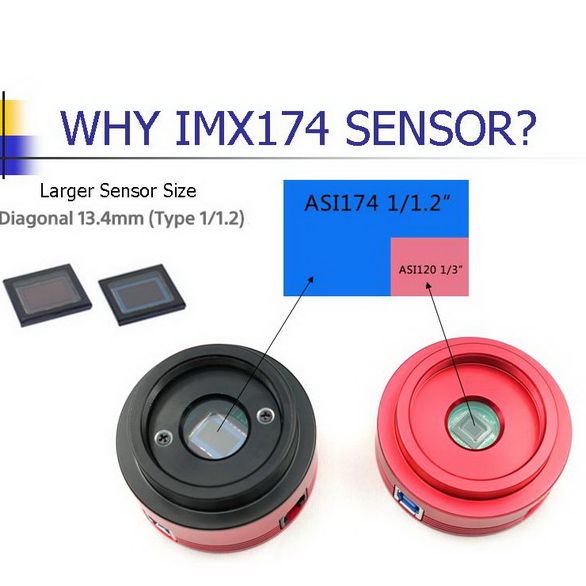

The ZWO ASI 174mm Mono camera features Sony’s Exmor IMX174 2.35MP CMOS sensor with Pregius shutter technology. The camera is therefore an excellent choice for photography of the moon, planets and sun! In particular, this camera is used for photography of the sun.

For photography of the sun, the ZWO ASI174 mm is therefore a real diamond with beautiful large pixels, which is suitable for most telescopes and applications.

Specifications of the ZWO ASI 174MM (mono) 1936×1216 5 86µm:

• Sensor: 1/1.2″ CMOS IMX174LLJ / IMX174LQJ
• Resolution: 2.3Mega Pixels 1936×1216
• Pixel Size: 5.86µm
• Exposure Rage: 32µs-1000s
• Back focus: 17.5mm
• ROI: Supported
• Interface: USB3.0/USB2.0
• Bit rate: 12bit output(12bit ADC)
• Adapter: 2″ / 1.25″ / M42X0.75
• Dimension: φ62mm X 41mm
• Weight: 140g
• Working Temperature: -5°C—45°C
• Storage Temperature: -20°C—60°C
• Working Relative Humidity: 20 %—80%
• Storage Relative Humidity: 20 %—95%
• Resolutions:12bit ADC : 1936X1216@128FPS / 640×480@309FPS / 320×240@577FPS / 2X2Bin : 968×608@128FPS10bit ADC: 1936X1216@164FPS / 640×480@397FPS / 320×240@740FPS / 2X164FPS / 2X164X608 @

Order the camera online or in the showroom

Is the ZWO ASI 174 mm the perfect camera for you? Then simply order it online at Ganymedes. If you prefer to see the camera in person first or if you want to see the difference with other ZWO cameras, such as the ZWO ASI 462 or the ZWO ASI 294, you are most welcome in our showroom in Amstelveen. We would be happy to receive you there on weekdays between 10 a.m. and 5 p.m. and on weekends between 10 a.m. and 4.30 p.m. Do you have questions about the ZWO ASI 174 mm Mono camera or our other products? Then call 020-6412083 and we will be happy to help you.
