ZWO ASI 120MM S (mono) 1280×960 3.75µm

Original price was: € 234,95.Current price is: € 189,00.

Betaal de eerste termijn direct via iDEAL. De tweede en derde termijn betaal je binnen 30 en 60 dagen. Zonder rente, zonder BKR-registratie! Klik voor meer informatie

The ZWO ASI 120MM S (mono) 1280×960 3 75µm, small camera from ZWO suitable for various purposes.

Out of stock

SKU: ZWO ASI120MS Categories: , , ,
Physical store
100% safe shopping
Large stock
Delivery service

Description

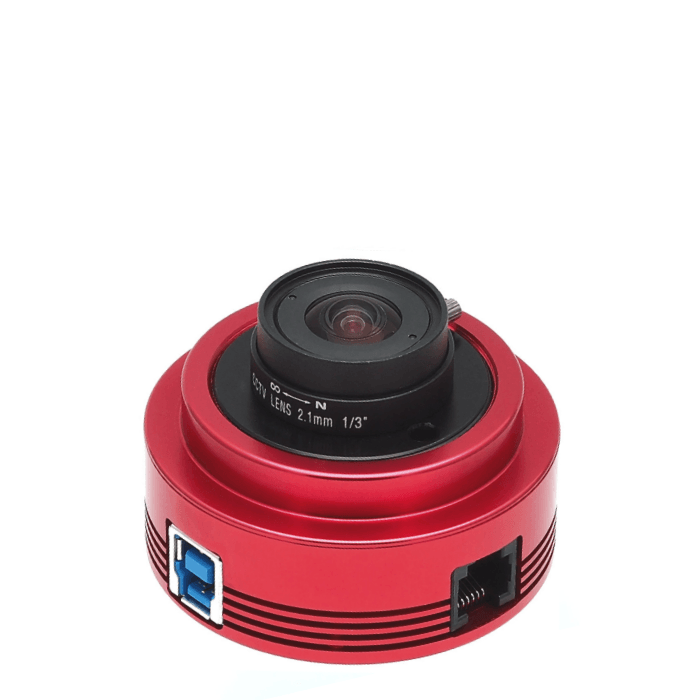

Introducing the ZWO ASI 120MM S (mono) 1280×960 3.75µm

A super fast USB3.0 version of the ASI120MM, the ZWO ASI 120MM S (mono), moon and planet camera. It can deliver up to 254 frames-per-second at lower resolution or 60 frames-per-second at full 1280×960 resolution.

Sensor, guiding and photography

Peak QE of 75% (better than the ICX618). It is also a very capable guiding camera. Compared to ICX618 based cameras, such as the Imaging Source DMK21AU618, the ASI120MM offers a significantly faster frame rate, slightly higher sensitivity in visual light and more pixels for moon photography.

Some specifications

  • Full aluminum housing with standard 2″ interface
  • And M42X0.75 internal thread, with one 150 degree wild lens.
  • Include autoGuider port and protect window.
  • One 1/4″ screw and 4 M4 screws in the backside.
  • Easy to attach TEC cooler!
  • IR-CUT window in the color camera and
  • a AR-AR coated window in the mono camera.

Specifications of the ZWO ASI 120MM S (mono) 1280×960 3 75µm:

  • Sensor: 1/3 inch CMOS MT9M034 (mono)
  • Resolution: 1.2Mega Pixels 1280×960
  • Pixel Size: 3.75µm
  • Exposure Rage: 64µs-1000s
  • Back focus: 12.5mm
  • ROI: Supported
  • Interface: USB3.0/USB2.0
  • Bit rate: 12bit output 12bit ADC
  • Adapter: 2 inch / 1.25 inch / M42X0.75
  • Dimension: φ62mm X 28mm
  • Weight: 100 grams
  • Working Temperature: -5°C—45°C
  • Storage Temperature: -20°C—60°C
  • Working Relative Humidity: 20 %—80%
  • Storage Relative Humidity: 20 %—95%

Supported Resolutions

Supported Resolutions: 1280X960@60FPS / 1280X720@98FPS / 1280X600@116FPS / 1280X400@168FPS / 480X320@196FPS / 320X240@254FPS / 2X2Bin@640X480@45FPS

Specifications general

State:
New

Brand:
ZWO

Series:
ASI120

Warranty:
2 years

Part number Ganymedes:
ZWO-ASI120MM-S

Part number manufacturer:
ASI120MM-S


Specifications product

Sensor kind:
CMOS

Sensor size:
1/3"

Sensor dimensions:
Unknown

Sensor type:
AR0130CS

Sensor diagonal (mm):
6

Color or Mono:
Monochrome

Megapixels (M):
1.2

Resolution:
1280×960

Pixel size (microns):
3.75

Maximum frames per second (FPS):
60

Memory:
No

Number of bits (ADC):
12

Protective glass:
Unknown

Shutter:
Unknown

Exposure time:
64µs-2000s

Read noise:
Unknown

QE peak:
Unknown

Full well:
Unknown

Active cooling:
No

Connection to computer:
USB 3.0

Connection to telescope:
1.25

ST4 connection:
Yes

Included adapters:
2″ / 1.25″ / M42X0.75

Included cables:
USB3.0

Length (mm):
28

Diameter (mm):
62

Weight (kg):
0.10

Application:
Moon and planets

Built-in filter wheel:
No

Power supply:
Via USB


Application

Suitable for moon and planets:
Excellent

Suitable for nebulae and galaxies:
Moderate

Suitable for sun:
Good

Suitable for autoguiding:
Excellent

Suitable for All-Sky:
Moderate

Suitable for children:
No

Suitable for novice user:
No

Suitable for advanced user:
Yes
