PrimaLuceLab Eagle4 S advanced control unit

Description

Description of the PrimaLuceLab EAGLE4 S advanced control unit

EAGLE4 S is the more powerful version of the EAGLE4. With its Dual Core i3 processor (with Turbo Mode up to 3.9 GHz), 8 GB of fast memory, larger SSD (240 GB) and added Thunderbolt 3 port with USB-C connector (which enables even more high-speed connectivity, up to 40 Gbps, to devices such as fast storage if you need extra space), EAGLE4 S offers even more power for complex applications! All in a lightweight, compact all-in-one design that can be installed on your telescope and comes with all the advanced features of EAGLE4.

If you want an EAGLE device with more power and storage space, but at the same time take advantage of a compact system with low power consumption, the EAGLE4 S is perfect. This device performs exceptionally, with an average power consumption of only 1A. That means it can be charged with a small, ‘normal’ battery, but delivers more than 1.6 times the performance of a standard EAGLE. In short: as a specialist, we are therefore convinced that this PrimaLuceLab model is an indispensable device in our collection of astronomical products!

Intel’s 8th Gen i3 processor with a TDP of only 15 W and 4 MB cache offers desktop-class performance with low power consumption. PrimaLuceLab’s EAGLE4 S offers three USB 3.1 type A ports with data transfer speeds of up to 10 Gbps; one USB Type-C/Thunderbolt 3 port with data transfer rates of up to 40 Gbps, as well as five USB 2.0 ports, two HDMI 2.0a ports, a Gigabit LAN port, and Wireless 802.11ac.

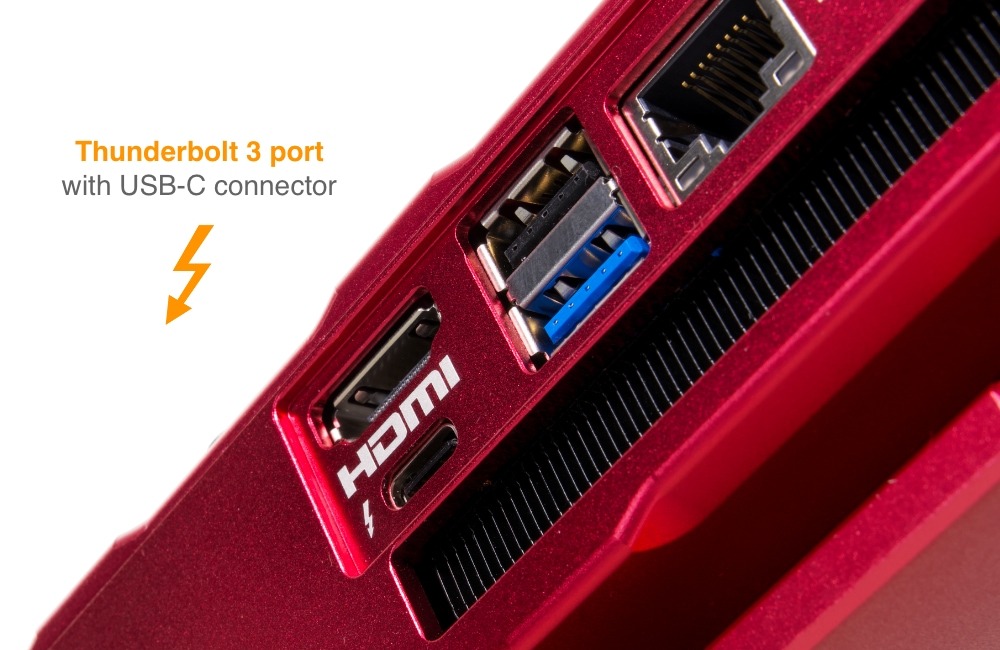

Thunderbolt

PrimaLuceLab’s EAGLE4 S also adds an incredibly fast and powerful Thunderbolt 3 port with USB-C type connector, enabling connections up to 40 Gbps with more connectivity options. Compared to a standard USB port, USB-C/Thunderbolt adds many extra features:

• Speed: while USB 3.0 is up to 5 Gbps, the Thunderbolt 3 port offers connectivity speeds of up to 40 Gbps.
• Power: the Thunderbolt 3 port is capable of delivering up to 15W.
• Connectivity: you can connect many devices to it, such as external drives, displays, multi-port docking stations, and audio devices. You can connect up to 6 devices in series via a single compact port. Since the cable has a USB-C connector, it’s reversible so you can’t plug it in wrong. If you have a standard USB-C device, you can connect it to the Thunderbolt 3 port (in which case the maximum speed is 10 Gbps).

Performance

PrimaLuceLab’s EAGLE4 S not only offers exclusive features for advanced astrophotography, but also has all the power of a real computer. This way you will be able to use all astrophotography software. As you can see in the image below, PrimaLuceLab’s EAGLE4 offers 32% more performance than a regular Mini PC with Intel Celeron N3160 processor, 4GB RAM and SSD drive. The EAGLE4 S brings this difference to 109%, while the EAGLE4 PRO even delivers an improvement of +153%!

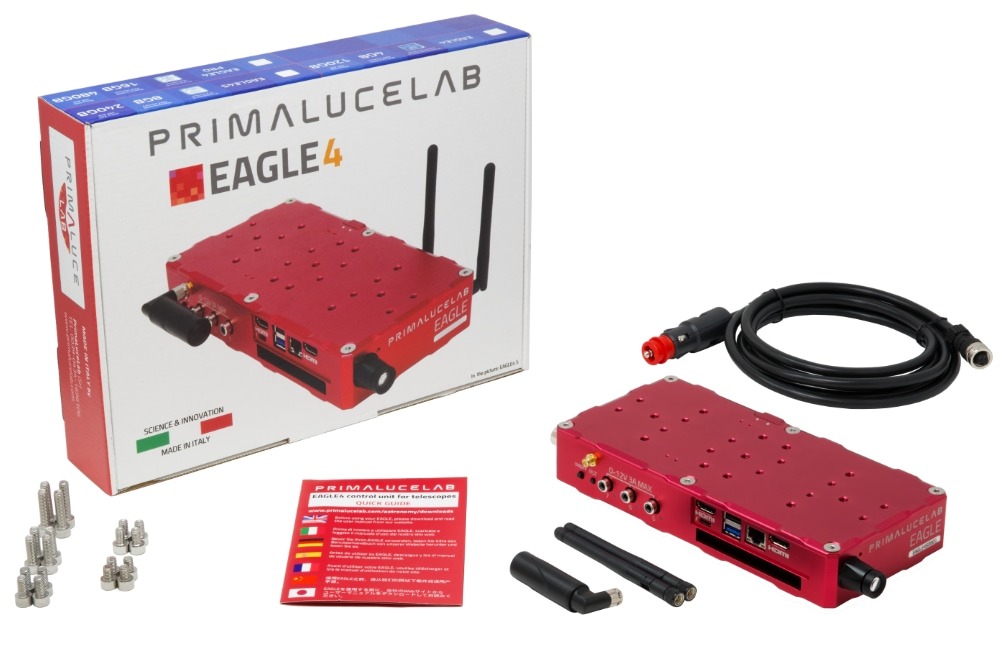

Delivery of the PrimaLuceLab Eagle4 S advanced control unit includes:

• EAGLE device
• 2 WiFi antennas
• GPS antenna
• 12V power cable with cigarette plug for EAGLE – 250cm
• n.4 M6x8 screws + n.4 M6x10 screws + n.4 M6x12 screws + n.4 n.4 M6x18 screws + n.4 M6x25 screws + n.4 M6x35 screws
• Quick guide

Request more information or order directly online

Thanks to PrimaLuceLab’s EAGLE4 S, your instrument has the high quality of an astrophotographic telescope, but the ease of use of a starter tracker. Lugging heavy computers is a thing of the past, as is blurred images because you accidentally touch the camera while shooting. Order this device easily online or in our showroom in Amstelveen. Would you like more information about this PrimaLuceLab product or other products, such as the iOptron SkyGuider or the Optolong filters? Call 020-6412083 and we will be happy to help you.
