Euromex EduBlue stereo microscope, choose your model

Description

Introducing the Euromex EduBlue stereo microscope, choose your model

Thanks to the exceptional quality of the optical components of the ergonomically designed Blue Line microscopes, beginner or advanced students can perform long and productive sessions on the microscope. With the Euromex EduBlue stereo microscope you get a microscope that will meet your wishes and requirements. Ganymedes has an extensive range of Euromex microscopes, view our other microscopes here .

The EduBlue microscopes are ideal for education

They are available with two or three pairs of lenses for magnifications from 5x to 80x and have incident and transmitted LED illumination. The two parallel optical light paths enable 3D observation of small insects, plants, rocks and minerals.

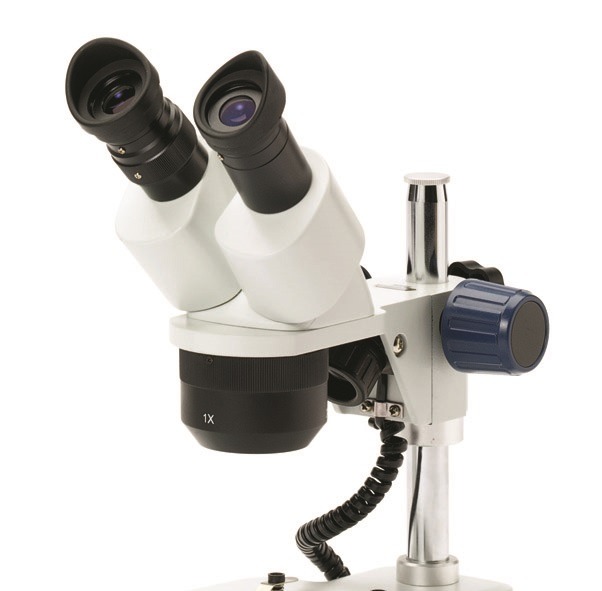

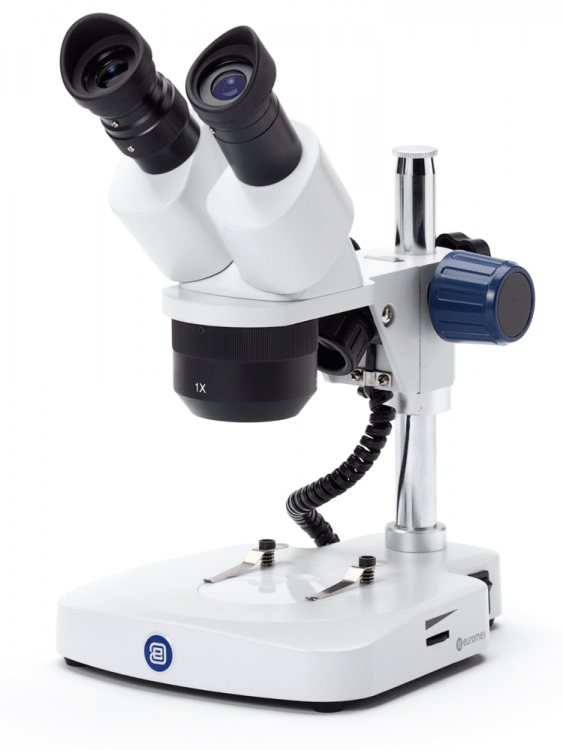

Column tripod version of the EduBlue stereo microscope. Column design has the advantage that you can view larger objects. Even if it no longer fits under it, you can rotate the head 180 degrees. The lighting rotates and so you can illuminate the object well to observe the details.

Depending on the size of the subject, adjust the head via the column to approximately the correct height and focus with the blue buttons on the side.

In general, a column tripod is slightly less stable than with a rack and pinion.

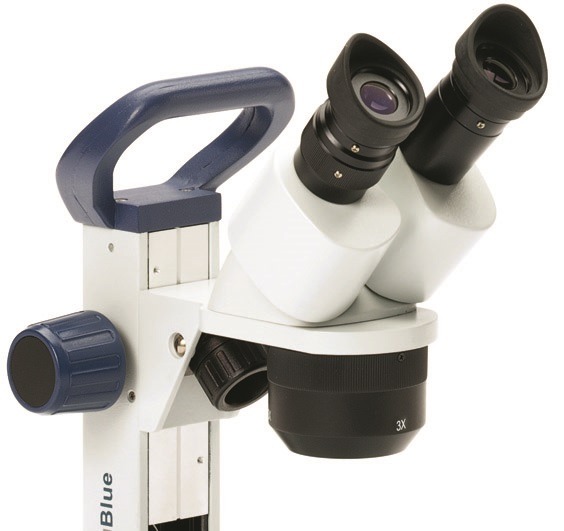

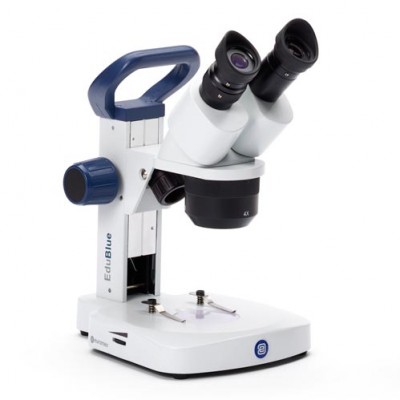

Rack and pinion tripod version of the EduBlue stereo microscope. Focusing is done via the blue buttons on the side. The larger objects will not fit under this. The advantage is that the rack and pinion connection is a bit firmer and there is a handle on top of the microscope.

If you use much smaller objects, then your choice should fall on the rack and pinion tripod.

With the rotatable objective you set the final magnification. This choice is sufficient in most cases.
The choice consists of: 1x – 3x | 2x – 4x | 1x – 2x – 3x | 1x – 2x – 4x .

Revolving revolver with two objectives

• Revolving revolver with two objectives 1x/3x or 2x/4x giving a standard magnification of 10x and 30x or 20x and 40x.
• Working distance of 60 mm.
• Fields of view of 20/6.7 mm or 10/5 mm.
• Other magnifications can be achieved by using other eyepieces.

Revolving revolver with three objectives

• Revolving revolver with three objectives 1x/2x/3x or 1x/2x/4x, giving a standard magnification of 10x, 20x and 30x or 10x, 20x and 40x.

• Working distance of 60 mm.

• Fields of view of 20/10/6.7 mm or 20/10/5 mm.

• Other magnifications can be achieved by using other eyepieces.

All lenses are treated against fungus and have an anti-reflection coating for maximum light output!

Microscope head

• Binocular head with 45° angled tubes.

• Diopter adjustment of ± 5 is on 1 tubes.

• Adjustable eye distance between 55 and 75 mm.

Illumination

• Falling and incident 1 W LED lights can be switched on simultaneously and the light intensity of both lights can be controlled individually.

Delivery of the Euromex EduBlue stereo microscope includes:

• Euromex EduBlue stereo microscope.
• Pair of 10x eyepieces.
• External 100-240 V power supply.
• 3 rechargeable batteries for cordless use.
• Dust cover.
• Eye shells.
• Instruction manual.
• Packaging: Polystyrene.

Features of the Euromex EduBlue stereomicroscopes are:

• Designed for education
• WF 10x/20mm eyepieces
• Robust and sturdy, with captive eyepieces
• Two or three magnifications
• Available with ergonomic rack and pinion tripod and column tripod
• Eye-catching and falling 1W LED lighting
• With rechargeable batteries for cordless use
• 5.0 MP camera digital models available
• Ergonomic handle
