Description

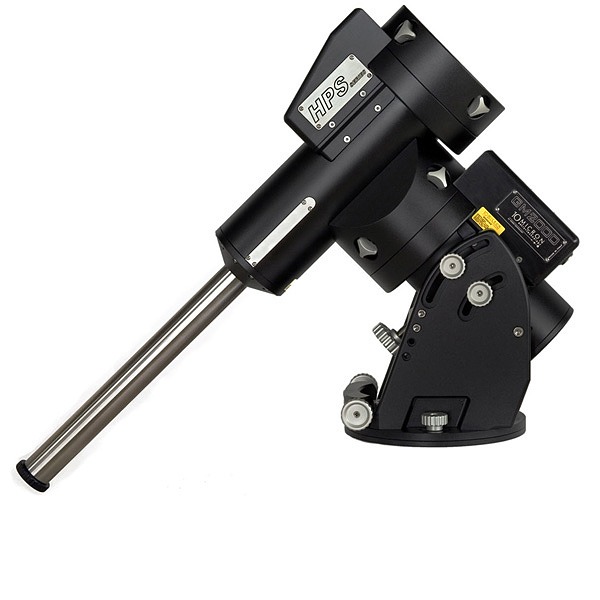

Evolving perfection. The GM2000HPS mount, now in the new M2 version, is built for the demanding observer using photographic instruments up to a weight of 50kg – 110 lbs (counterweights not included). Movements are driven by two servo brushless motors, with timing belt reduction having zerobacklash. Both axes feature a classic worm – wormwheel pairing. The wormwheels are made of bronze (B14), with a diameter of 172mm and 215 teeth, while the worms are made of alloy steel with a diameter of 24mm. The axes themselves are made of 50mm diameter alloy steel, for the maximum rigidity.

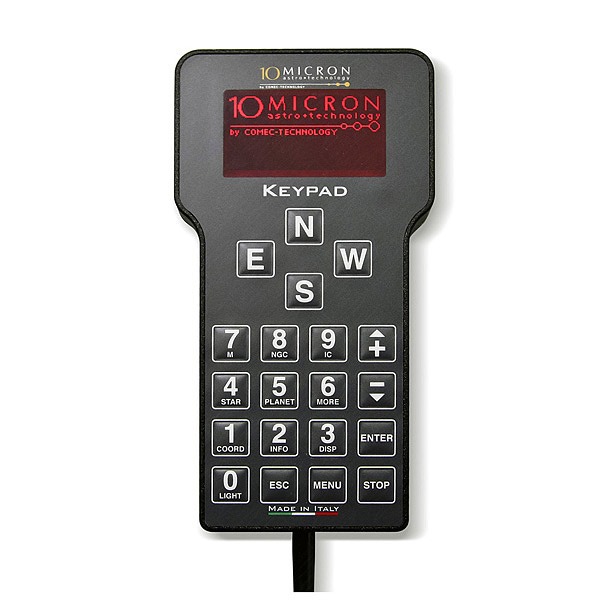

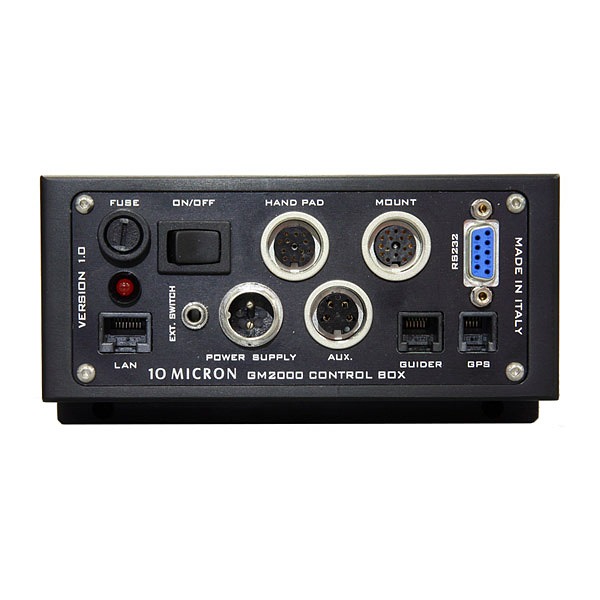

The electronics is housed in an independent control box, easily removable. The connections of the mount and keypad feature secutiry lock screws. The mount can be controlled using the included keypad, without connecting an external PC. The keypad is built in order to maintain the maximum readability in all lighting conditions. Both the display and the ergonomic keys, allowing for the use of gloves, feature a red backlight. An heater keeps the display warm for usage below freezing temperature.
The mount can be controlled using the most common software packages by connecting it to a PC with the RS-232 serial port or the Ethernet connection, via the 10micron ASCOM driver or the Meade compatible command protocol. Furthermore, a dedicated software (also included with the mount) can be used to create a “virtual keypad” replicating exactly the functions of the physical keypad. The RS-232 port can also be used to control an external dome. This flexibility makes the GM2000HPS an ideal mount for observatories and remotized observing sites.
The object database contains many star catalogs and deep-sky objects up to the 16th magnitude. Solar system objects can be tracked so that their motion is compensated with respect to the stars. You may load orbital elements of comets, asteroids and artificial satellites into the mount, so that these objects can be tracked directly using the keypad (without any external PC). Pointing is made accurate through the usage of a model containing up to 100 stars, which allows for the correction of the classical polar alignment and conic errors, and also of the most important flexure terms of the optical tube. In this way it is possible to obtain pointing accuracies of the order of 20 arcseconds RMS. The same model can be used in order to obtain the maximum tracking accuracy, compensating also for the atmospheric refraction (depending on the local atmospheric pressure and temperature).
A series of auxiliary functions is provided to help the user for quick aligning the mount to the celestial pole. You may also save and recover the alignment data of different observing sessions. This function is very useful if you have many instruments in different setups, each one requiring different flexure corrections. Tracking through the meridian, a typical problem with german mounts, is solved allowing for tracking for up to 30° past the meridian (configurable), in both directions. In this way any object can be tracked for at least four hours.
The tracking accuracy makes autoguiding not necessary for many uses. The absolute encoders on both axes allows to obtain a typical tracking error below 1 arcsecond.
It is possible to autoguide anyway, using the ST4-compatible port or through the serial/Ethernet connection, with a guide rate configurable from 0.1x to 1x. The guide rate can be automatically corrected for the declination of the target, so that there is no need of recalibrating the autoguide when observing at different declinations. Among the other functions, you will find the electronically-assisted balance and the ability of parking the mount in different user-defined positions.

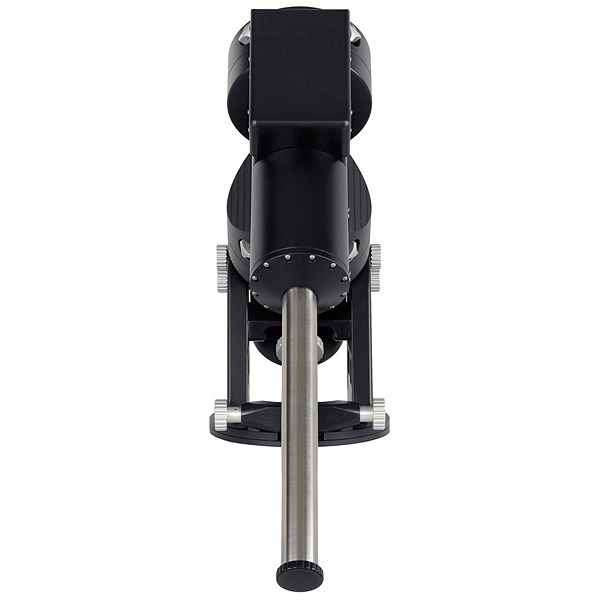

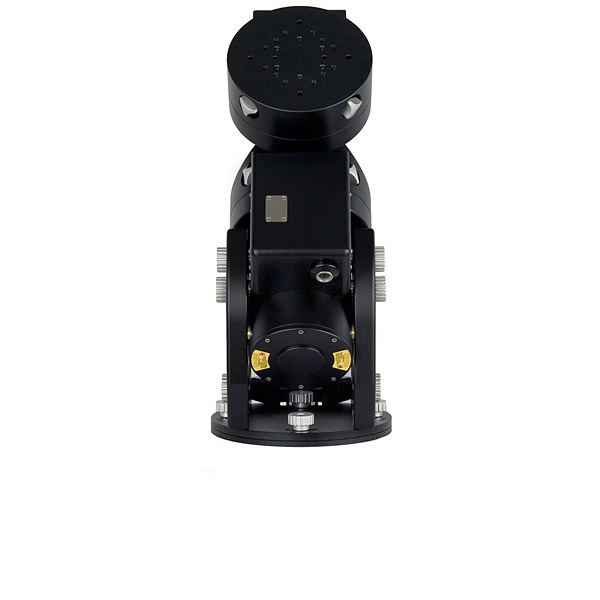

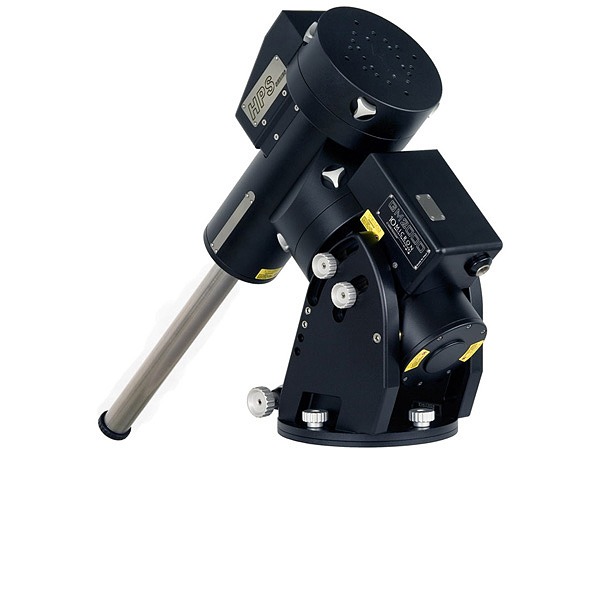

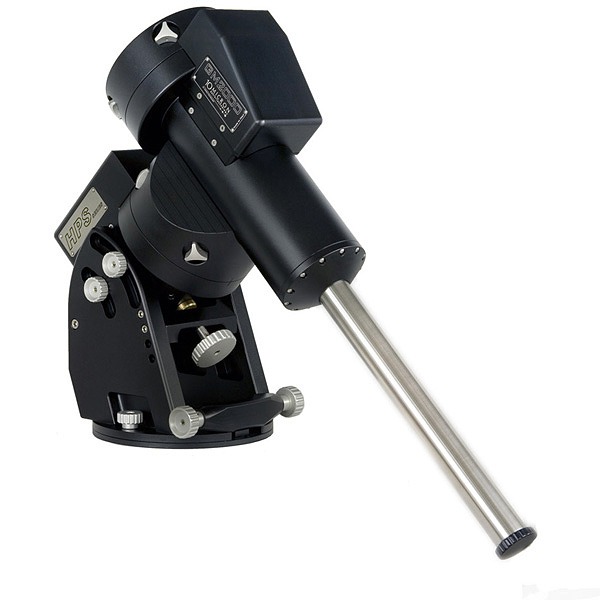

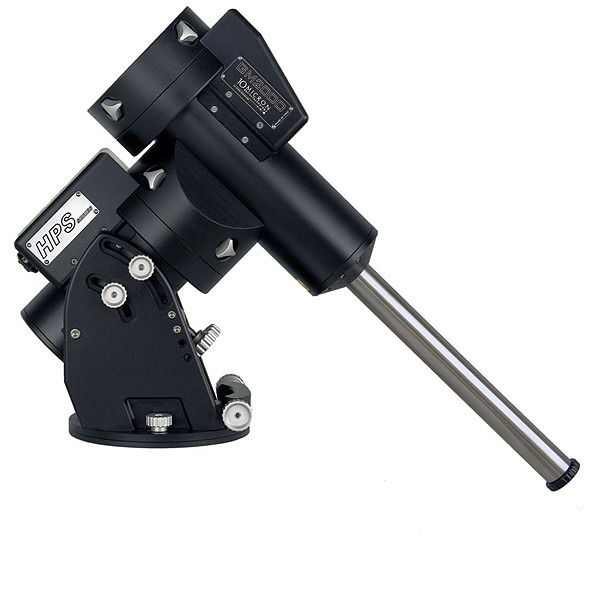

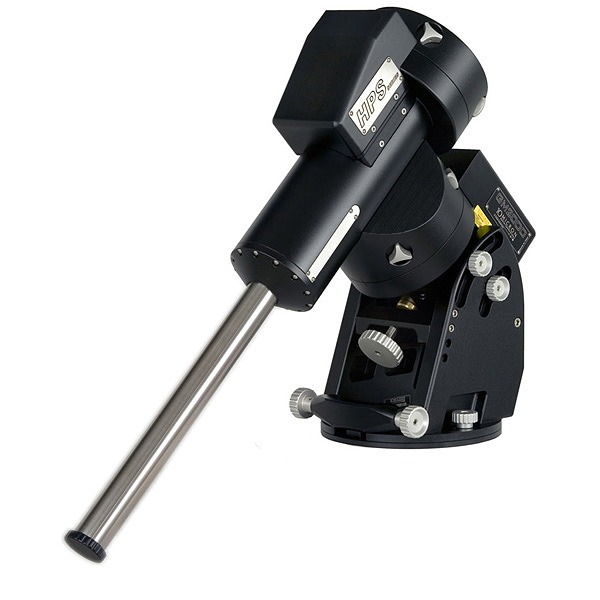

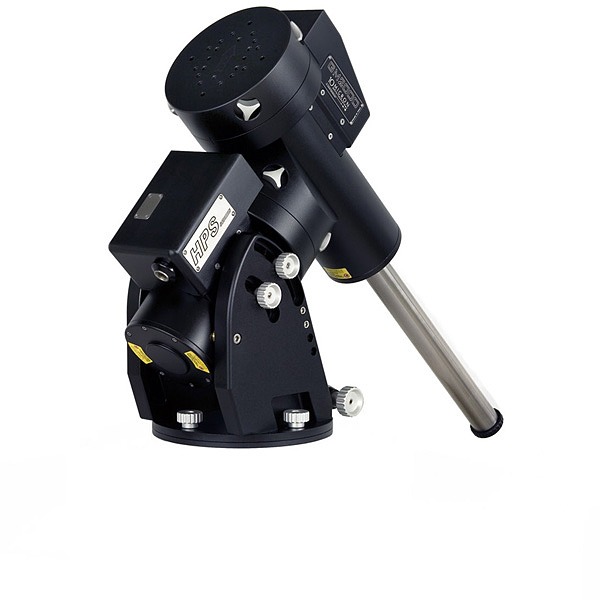

The Monolith version is perfect for small observatories.
Levering Omvat:
GM 2000 HPS II Mount – Monolith version including:
- GM2000 HPS II Mount with built-in precision absolute axis-encoders
control box with onboard-intelligence (Linux-processor),V. 2 – HPS version firmware, stand alone system ( no PC required) - professional handcontrol unit with graphic display and temperature control – 10M2020U
- cables
- counterweight bar
- strong transport carton-box with shaped foam – 10M2066
- WiFi option included.
| Type | German Equatorial Mount |
| Weight (mount) | 30 kg – 66 lbs without accessories |
| Weight, Ultraportable version (mount) | 15 kg – 33 lbs + 15 kg – 33 lbs without accessories |
| Instrument payload capacity | 50kg – 110 lbs |
| Latitude range | 20° – 70° |
| Azimuth fine adjustment range | +/− 10° |
| Counterweight shaft | 40 mm diameter, stainless steel, weight 4 kg – 9 lbs |
| Axes | 50 mm diameter, alloy steel |
| Bearings | Pre-loaded tapered roller bearing |
| Worm wheels | 215 teeth, 172 mm diameter, B14 bronze |
| Worms | diameter 24mm, tempered alloy steel, grinded and lapped |
| Transmission system | Backlash-free system with timing belt and automatic backlash recovery |
| Motors | 2 axes servo brushless |
| Power supply | 24 V DC |
| Power consumption | ~ 0,7 A while tracking ~ 3 A at maximum speed ~ 5 A peak |
| Go-to speed | Adjustable from 2°/s to 20°/s |
| Pointing accuracy | < 20” with internal multiple-stars software mapping |
| Average tracking accuracy | < +/− 1″ typical for 15 minutes (< 0.7″ RMS) with internal multiple-stars software mapping and compensation of flexure and polar alignment errors |
| Security stop | +/− 30° past meridian in r.a. (software) +/− 45° past meridian in r.a. (mechanical) |
| Operational temperature range (standard) | – 15° C to + 35° C + 05° F to + 95° F |
| Storage temperature range | – 40° C to + 50° C – 40° F to +122° F |
| Special operational temperature range | Optional, for very low temperature operations: contact us for more details |
| Communication ports | RS–232 port; GPS port; autoguide ST-4 protocol port; Ethernet port |
| Database | Stars: by name, Bayer designation, Flamsteed designation, Bright Star Catalogue, SAO, HIP, HD, PPM, ADS, GCVS. Deep-sky: M, NGC, IC, PGC ,UGC limited up to mV = 16. Solar system: Sun, Moon, planets, asteroids, comets, artificial satellites. Equatorial and altazimuth coordinates. User defined objects, fast slewing positions. |
| Firmware features | User defined mount parking position, 2‑stars and 3‑stars alignment function, up to 100 alignment stars for modeling, correction of polar alignment and orthogonality errors, estimate of average pointing error, storage of multiple pointing models, sidereal, solar and lunar tracking speed adjustable on both axes, declination-based autoguide speed correction, adjustable horizon height limit, pointing and tracking past meridian,, assisted balance adjustment, manual or GPS based time and coordinates setting, dome control via RS-232, configurable atmospheric refraction, network settings, comets and asteroids filter, multi-language interface. Remote Assist via Internet connection. |
| PC control | Remote control via RS-232 or Ethernet; proprietary ASCOM driver or Meade compatible protocol; update of firmware and orbital elements of comets, asteroids and artificial satellites via RS-232 or Ethernet; virtual control panel via RS-232 or Ethernet. Wi-Fi included to control the mount via Tablet, Smartphone etc. |
LET OP:
All mounts distributed through Baader may only be powered by our power supplies or with power supplies authorized for use by us. Damage caused by usage of inproper, unauthorized power supplies or voltage inverters will lead to a chargeable repair and/or may void the warranty.
Belangrijk dus om een Voeding volgens de BAADER specificaties mee te bestellen.
